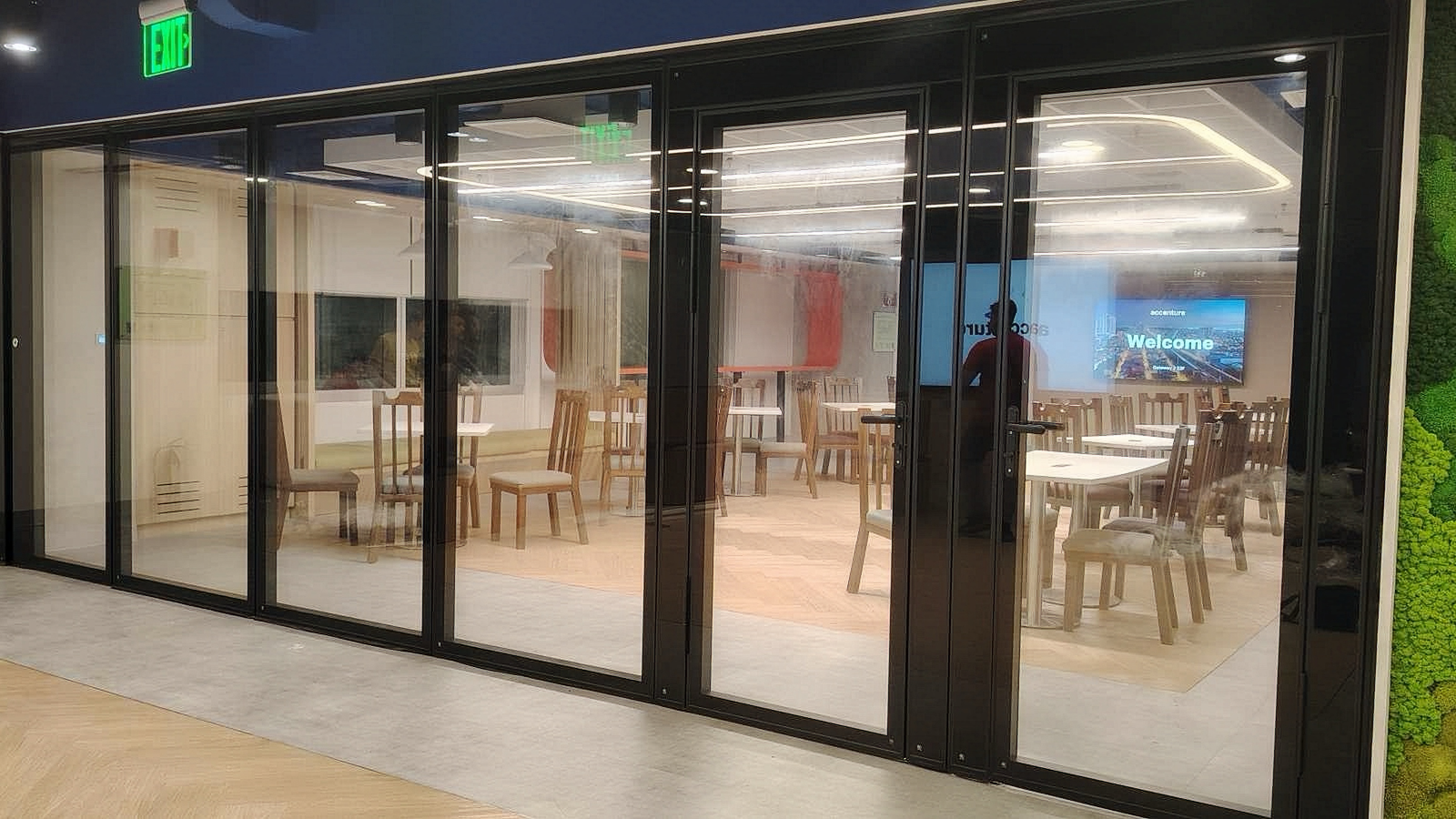

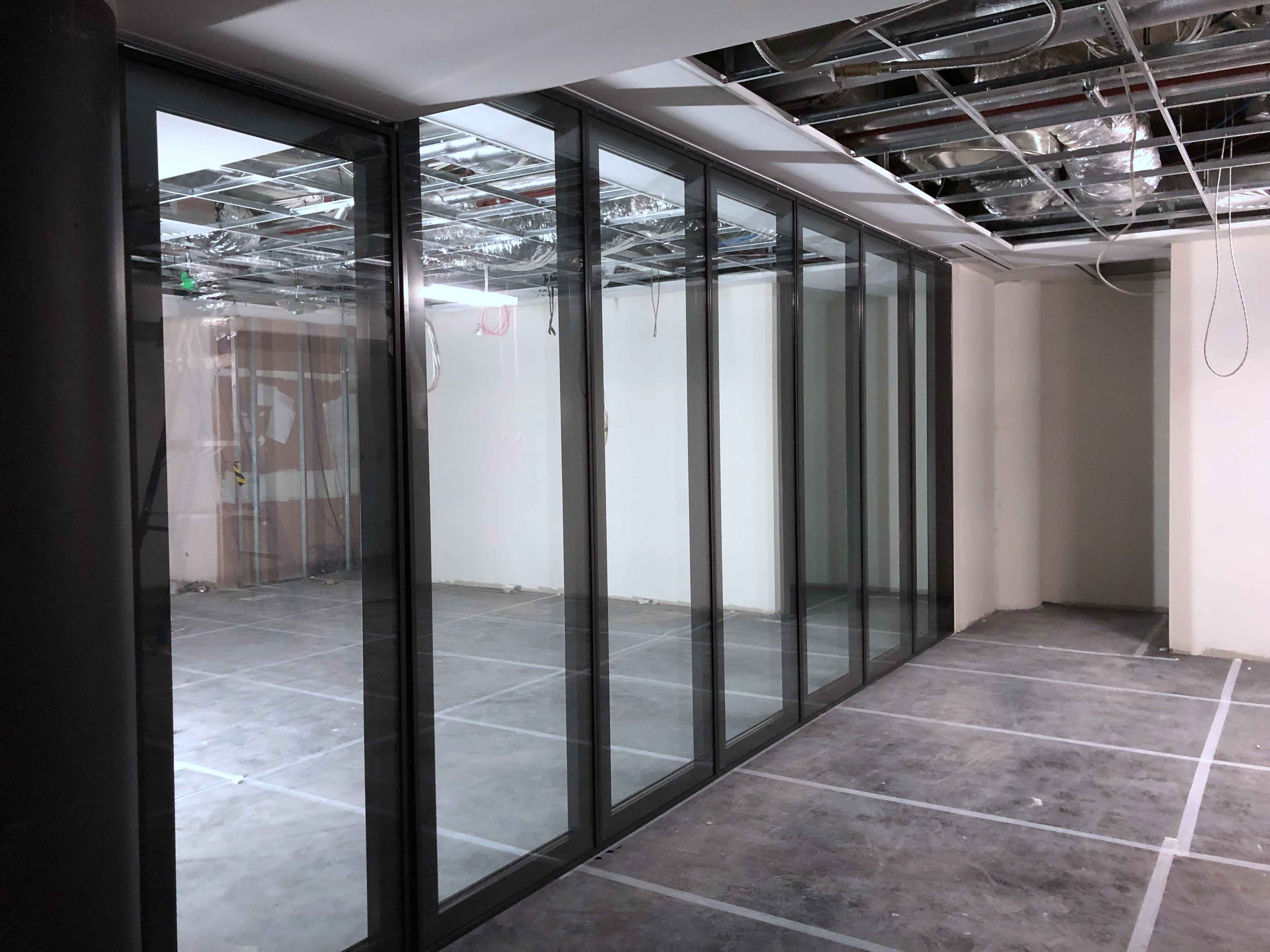

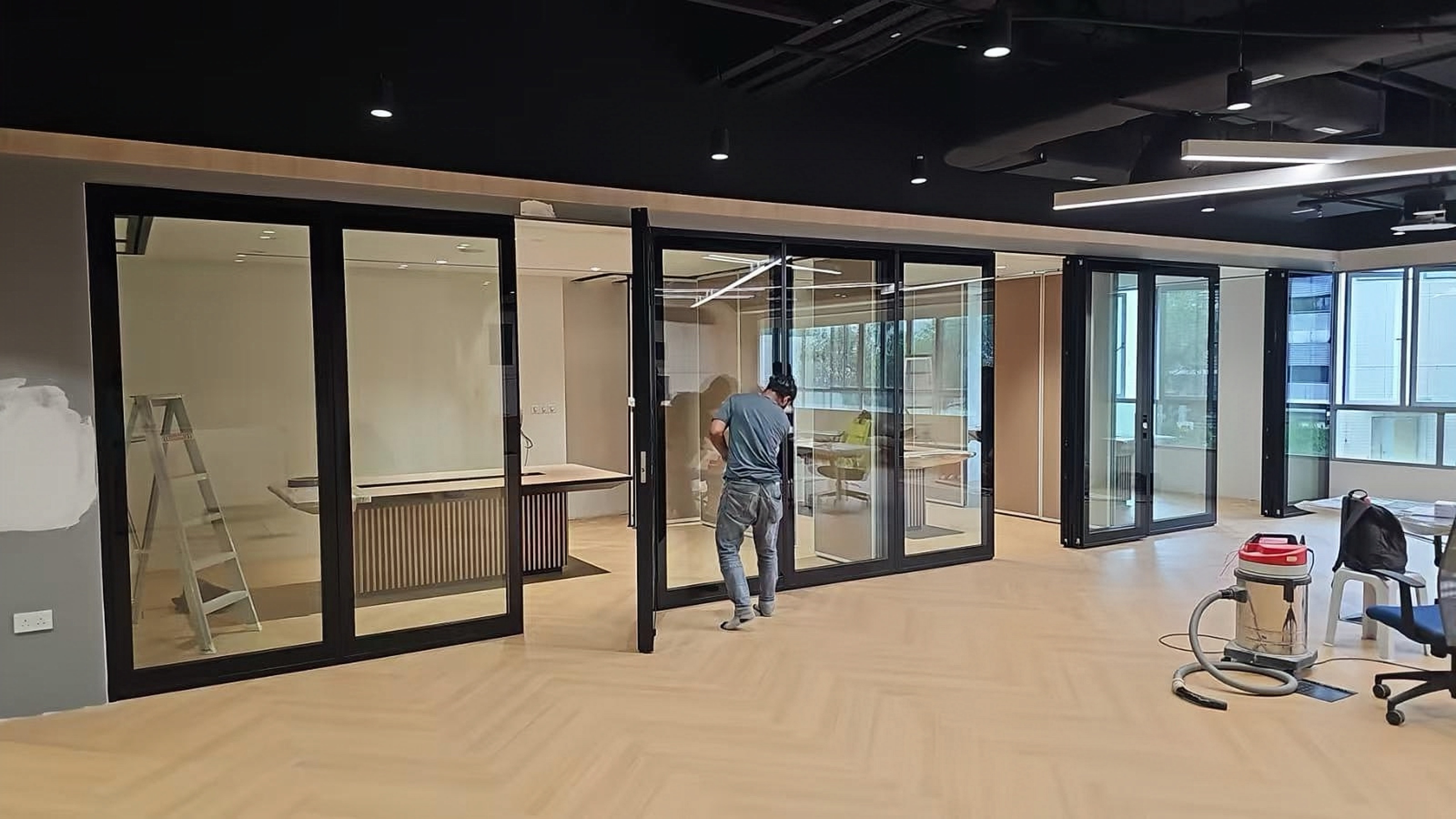

Movable Glass Wall
Operable Glass Wall,Top and bottom retractable wall, the wall panel is positioned by extending seal without the need of floor rail, double glazed,8mm +8mm thickness, The wall frame is black or white color coated,6mm black or white coating on perimeter of glass concealing the inner transmission mechanism.
Movable Glass Wall,top support without the rail on the floor, each wall panel is positioned by top&bottom retractable seal bring excellent air tightness and soundproof.
MODEL:NG80-B
TRACK SYSTE: #6063 Aluminum
TRACK FINISH: Clear Anodized
PANEL FRAME FINISH: Clear Anodized,White or Black Powder Coating
PANEL FACE: Double Glazed,8mm+8mm Toughened Clear Glass 60mm
White or Black Border Around perimeter
PANEL TRIM: Aluminum Frame
STC: Rw 44dB
TOP SEAL: 23mm Retractable Seal
BOTTOM SEALS: 22mm Retractable Seal
CLOSURE SYSTEM: Telescopic Panel
FEATURES
|
Anodized aluminum framing
|
Optional retractable bottoms seals
|
|
Top supported system
|
Optional panic bar
|
|
No floor tracks
|
Other optional substrates and finishes
|
|
Optional 12mm tempered glass
|
Preparation for optional car reader(with hinged door |
|
Optional horizontal mullions
|
No visible screws
|
PROPERTIES
|
MAXIMUM HEIGHT PER PANEL
3048mm (10’) with intermediate door
4000mm (13’) without intermediate door
|
MAXIMUM HEIGHT PER PANEL
3048mm (10’) with intermediate door
4000mm (13’) without intermediate door
|
|
MAXIMUM WIDTH PER PANEL
1219mm (4’)
|
MAXIMUM WIDTH PER PANEL
1219mm (4’)
|
|
SYSTEM WEIGHT
44,01kg/m² (9lbs/ft²)
|
SYSTEM WEIGHT
48,9kg/m² (10lbs/ft²)
|
|
GLASS TREATMENT
60mm coating(Black or white) around
perimeter
|
GLASS TREATMENT
80mm coating(Black or white) around
perimeter
|
|
TOP AND BOTTOM SEALS
Top and bottom retractable seal
|
TOP AND BOTTOM SEALS
Top and bottom retractable seal
|
|
ACOUSTICAL PERFORMANCE
44 STC
|
ACOUSTICAL PERFORMANCE
44 STC
|
