Ultra-high Partition Wall
Designed for movable partition as high as 7 m to16 m with max soundproof rate 53 dB. Load bearing of each meter is more than 2000 kilograms, pulley bearing more than 1600 KGS, used in large place, such as banquet hall, multi-function hall, exhibition center, gym and conference room.
JUBUQIHOU-SHOP
Designed for movable partition as high as 7 m to16 m with max soundproof rate 53 dB. Load bearing of each meter is more than 2000 kilograms, pulley bearing more than 1600 KGS, used in large place, such as banquet hall, multi-function hall , exhibition center, gym and conference room. Ultra-high type partition is top hung system, hanging wheel sliding in the track smoothly and stability without vibration, the 16 meters high partition can easily move even being pushed at waist-high. With build- In oriental device, the panel can make a turn automatically as sliding in the straight rail.
TECHNICAL INFORMATION
| Height Range: | 7m to 16m, customizable for diverse spatial requirements. |
| Soundproof: | Achieves a maximum soundproof rate of 55 dB, ensuring minimal noise transfer. |
| Load Capacity: | 2,000+ kg/meter vertical load-bearing capacity. 1,600+ kg pulley load capacity for stable sliding. |
| Structural Design | Top-hung system with precision-engineered tracks for smooth, vibration-free movement. Built-in guiding device enables automatic directional adjustment of panels during sliding. |
| Mobility: | Operates effortlessly even when pushed at waist height. Ideal for high-traffic areas requiring rapid reconfiguration. |
| Applications: | Banquet halls, multi-functional venues, exhibition centers, gyms, and conference rooms. |
| Model | Acoustic | Weight(M²/KG) |
| NW125 | 43dB | 38.50 |
| NW125 | 48dB | 40.50 |
| NW125-W | 50dB | 45.00 |
| NW-125-W | 53dB | 50.00 |

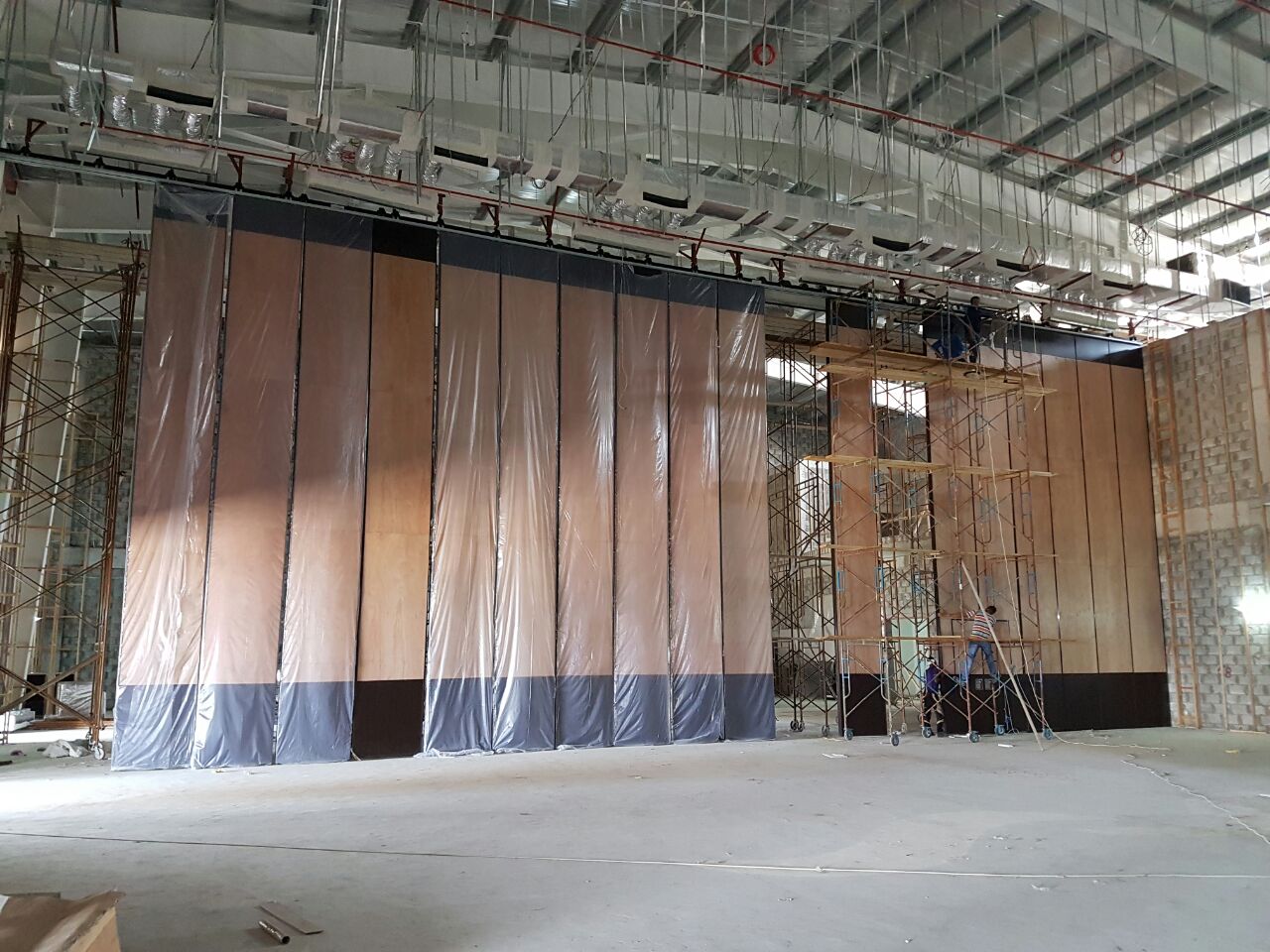

12M High Partition Wall in Conference Hall

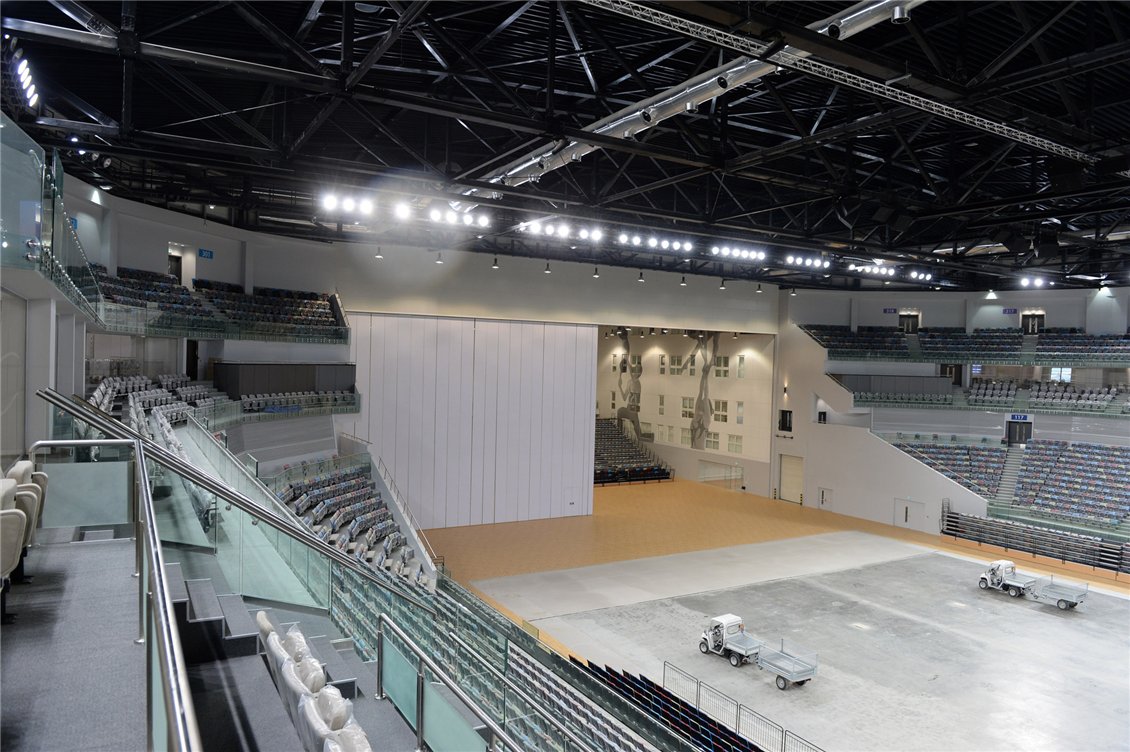

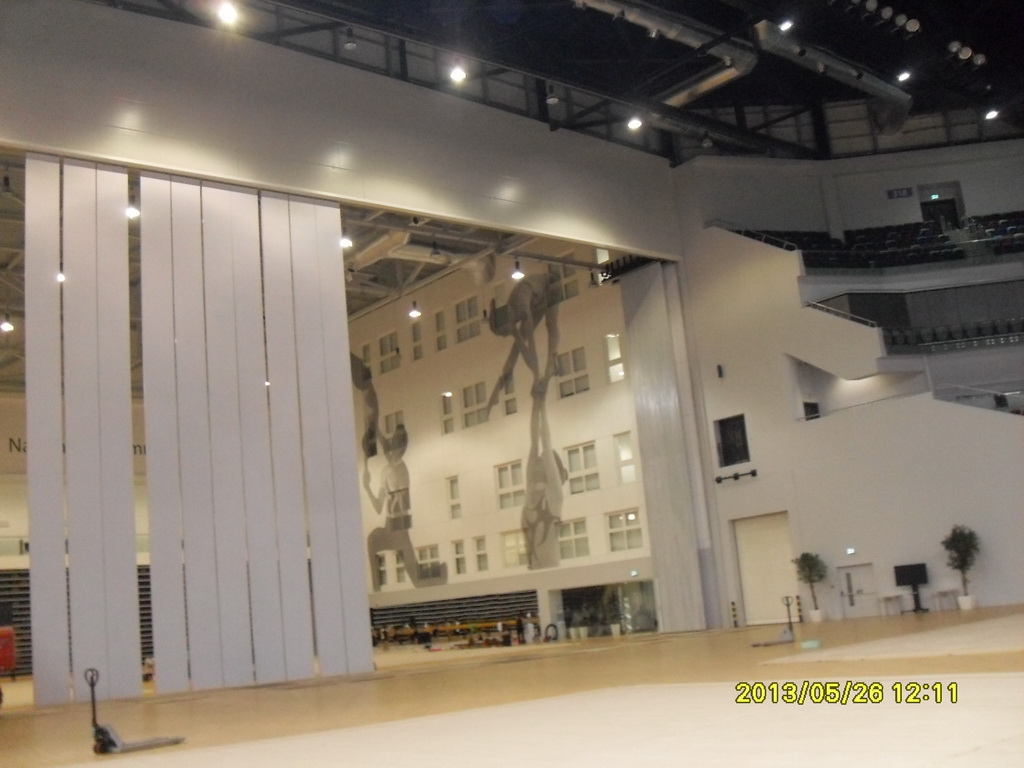

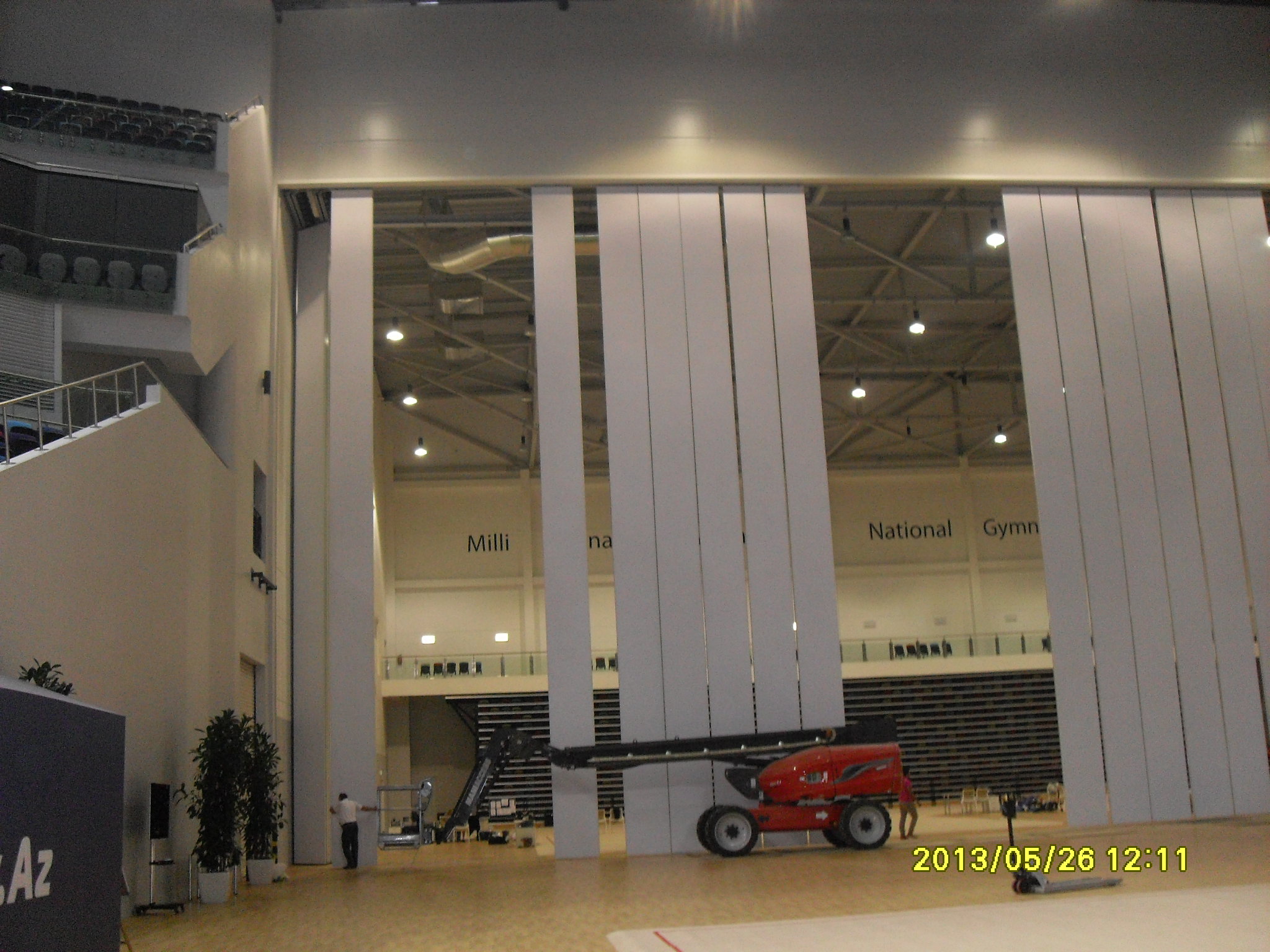

16.54M High Partition Wall In National Gymnastics Arena Of Baku,Azerbaijan
Panel turning
-
Delete template
-
Insert row upInsert row down
Panel Stacking
-
Delete template
-
Insert row upInsert row down
Steel Rail

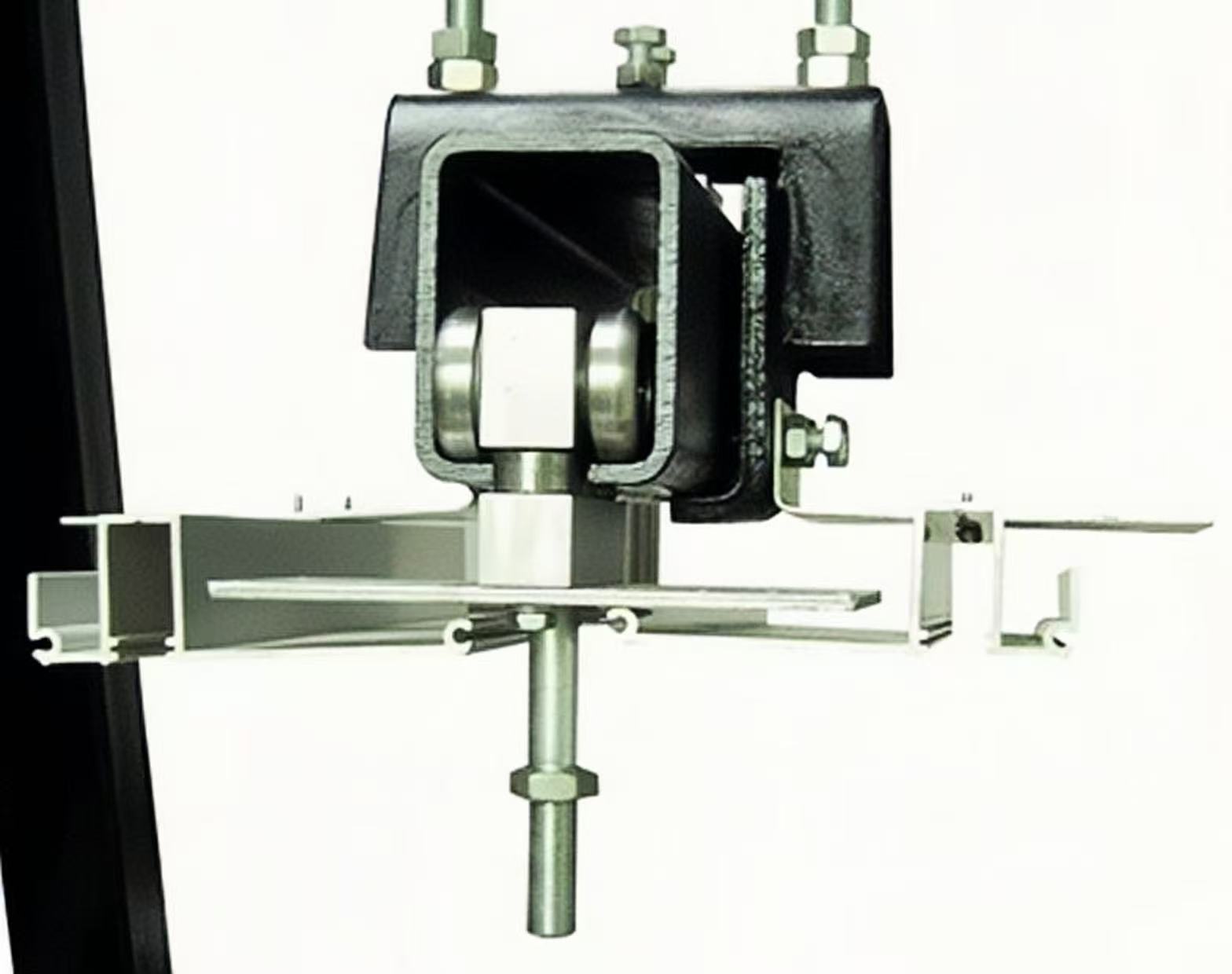

Steel Trolley
Rail Clamp

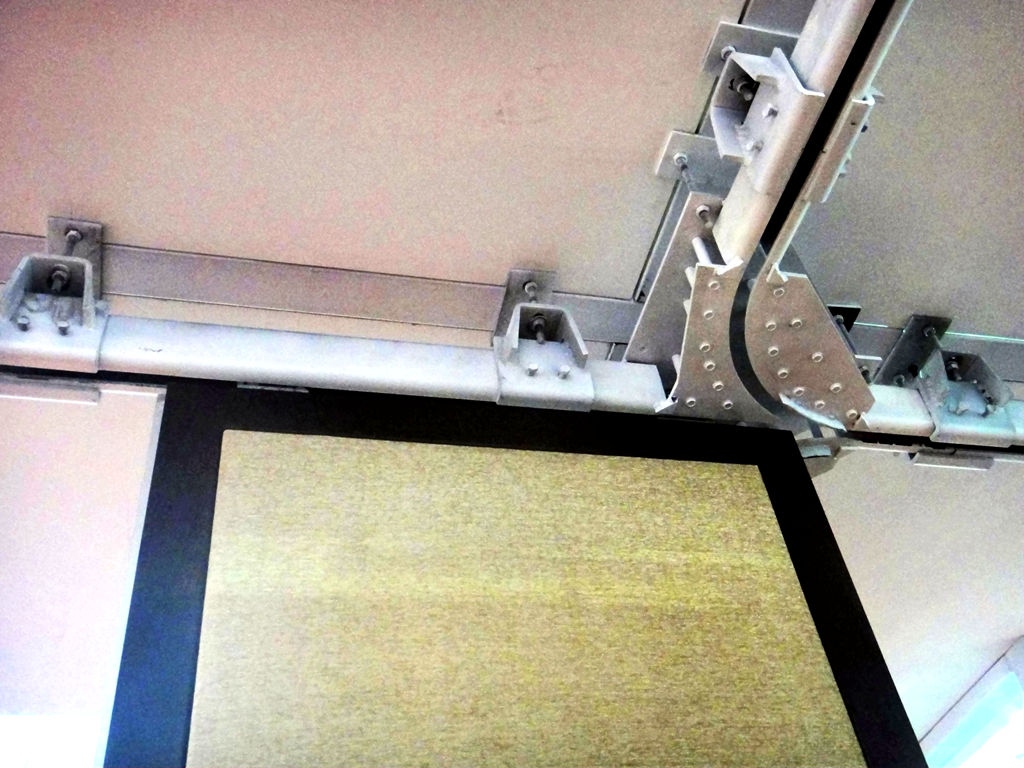

L Steel Intersection
Steel Intersection
