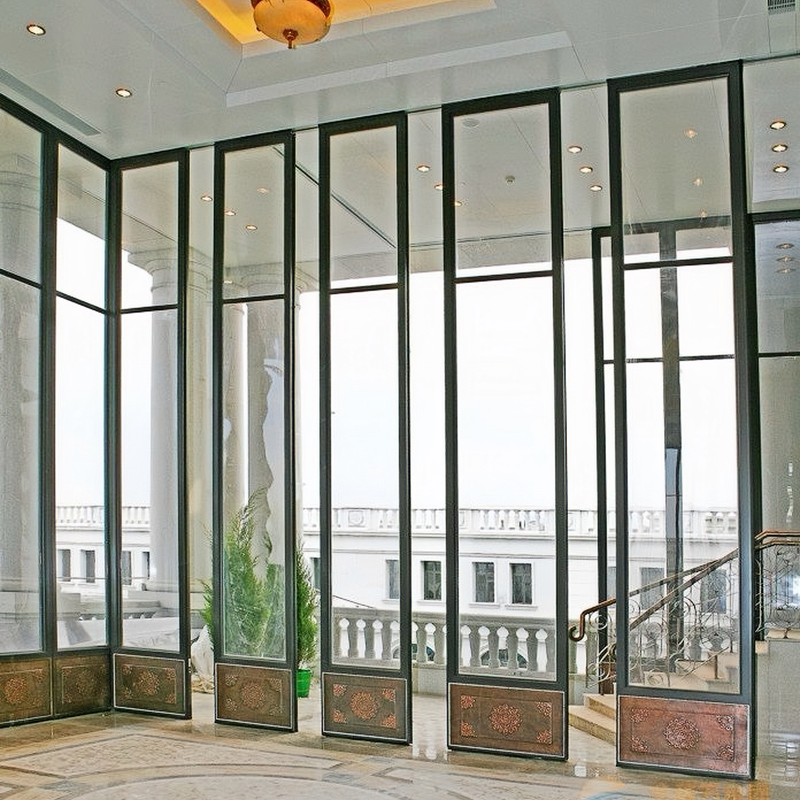

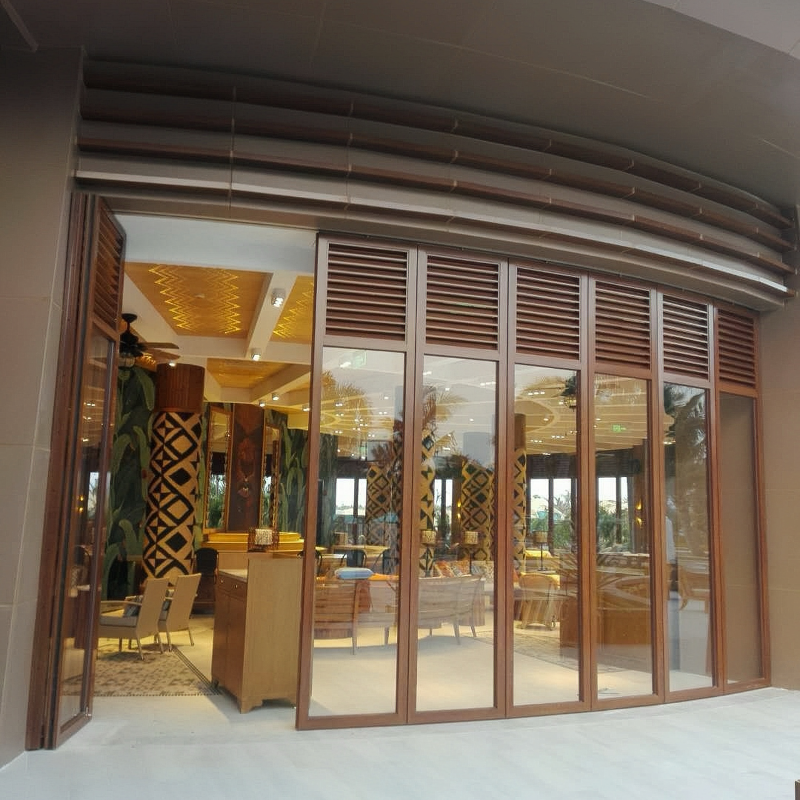

Folding Partition Wall

The Top-Supported Movable Glass Wall System is a sleek, modern partitioning solution designed for flexible space division in commercial, residential, and institutional settings. Engineered with a floor rail-free design, this system features top-mounted structural support and floor bolts for panel positioning, ensuring seamless aesthetics and functional versatility. Ideal for offices, hotels, conference rooms, and retail spaces, it combines minimalist design with robust performance.

Key Features & Benefits

1. No Floor Rail Design

   • Eliminates tripping hazards and simplifies floor cleaning.

   • Enhances accessibility and maintains uninterrupted floor aesthetics.

2. Top-Hung Support System

   • Panels are suspended from an overhead aluminum or steel track, ensuring stability without visible floor clutter.

   • Supports smooth sliding or folding operation (depending on configuration).

3. Bottom Floor Bolt Positioning

   • Each glass panel is secured via discreet floor bolts, providing precise alignment and lateral stability.

   • Allows quick reconfiguration of panel layouts without permanent floor modifications.

4. Customizable Configurations

   • Available in sliding, folding, or fixed-panel designs.

   • Compatible with clear, frosted, tinted, or laminated glass (6–12 mm thickness).

5. Acoustic & Thermal Performance

   • Optional integrated seals and gaskets for enhanced sound insulation (STC ratings up to 42 dB).

   • Energy-efficient glass options to reduce heat transfer.

Technical Specifications

    Floor Bolts                           Aluminum Framework                                            Wall Panel with Floor Bolts

Installation Guidelines

1. Structural Requirements

   • Overhead track must be anchored to a load-bearing ceiling/beam (min. load capacity: 200 kg/m).

   • Floor substrate must be level (±2 mm tolerance) for bolt alignment.

2. Panel Mounting Process

   • Attach panels to the overhead track via roller carriages.

   • Align panels vertically and secure using floor bolts (pre-drilled holes).

   • Adjust bolt height for perfect leveling and stability.

3. Maintenance

   • Clean tracks and rollers annually to ensure smooth operation.

   • Inspect floor bolts quarterly for tightness and corrosion resistance.

Applications

• Corporate Spaces: Open-plan offices, meeting rooms, executive suites.

• Hospitality: Hotel lobbies, restaurant dividers, event spaces.

• Healthcare : Privacy screens, clinic partitions.

• Retail : Pop-up stores, display zones.

Warranty & Support

• 10-year warranty on structural components.

• 2-year warranty on moving parts (rollers, bolts).

• Technical support and CAD drawings available upon request.
