Aluminum Folding Wall

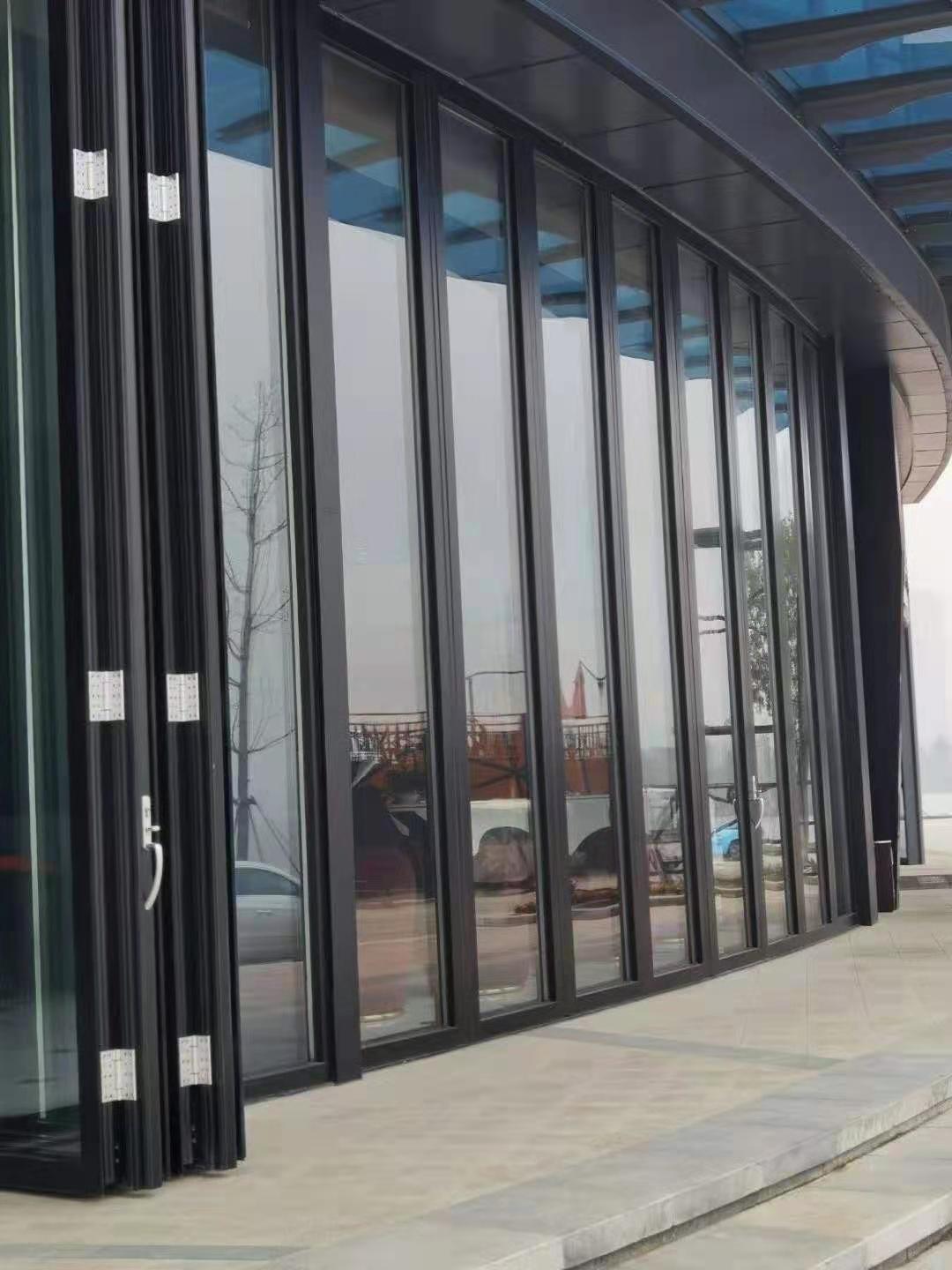

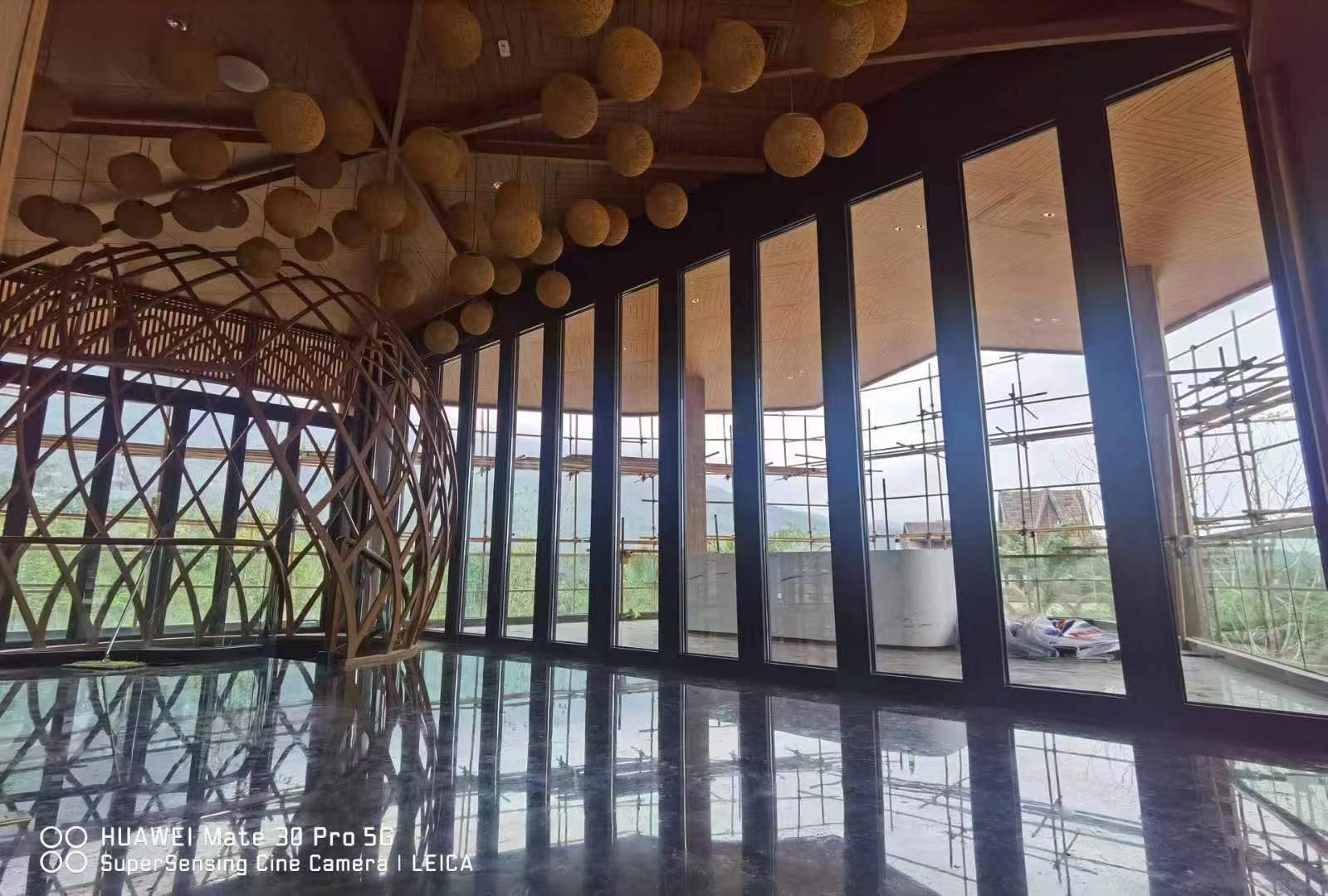

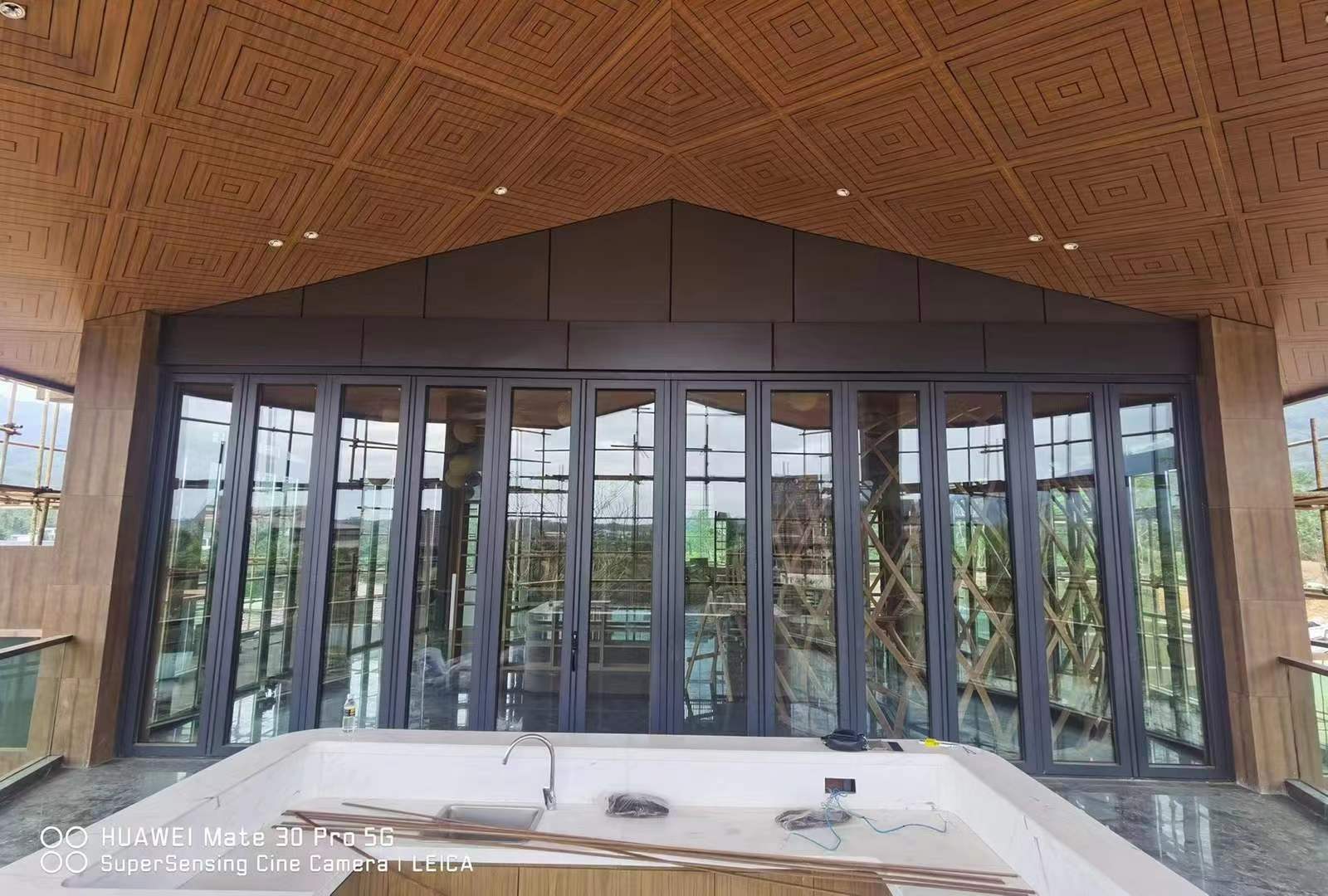

NWF Aluminum 80 Folding Glass Wall
The innovative NWF Aluminum 80 provides the slimmest and most thermally efficient aluminum framed system within the Generation 4 Folding Glass Wall by Neuwall product family.
Innovative Design Features
NWF Aluminum 80 sets a new standard in folding glass wall systems with its combination of sleek aesthetics and advanced engineering.
Minimal Sightline Design
Panel frames are slim and contemporary with a total 3 7/8" (99 mm) junction where adjacent panels meet. Top and bottom rails are a minimal 2 5/8" (66 mm), providing a clean, modern aesthetic.
Patented Thermal Break Profile
The polyamide single piece insulbar design provides outstanding insulation for energy efficiency while housing the system's locking rods. This innovative "Bionic Turtle" design enables the slim profile appearance.
Concealed Panel Alignment
Our patented mechanism aligns panels over 7' (2150 mm) in height with hidden spring-loaded structural reinforcement, eliminating the need for exposed mid-system hinges.
Technical Specifications
System Performance & Specifications
Panel Dimensions
Maximum height: 11' 6" (3500 mm) | Panel width: Up to 3'7" (1100 mm)
Thermal Efficiency
Up to 20% more thermally efficient than comparable systems with continuous seals along each panel frame
Glazing Options
Accommodates insulated glass from 7/8" (22 mm) to 2 7/16" (62 mm)
Opening Configurations
Available in inswing or outswing configurations, supporting open corner designs
System Width Adjustment
Lateral adjustment of +/- 3/16" (5 mm) to accommodate construction tolerance
Sill Options
Four options: Hybrid, Low Profile Saddle, Low Profile Saddle, and Flush - all with removable aluminum high heel resistant inserts
NWF Aluminum 80 Technical Diagram
System Benefits
Superior Thermal Performance
Two levels of insulating thermal breaks provide optimal defense from heat and cold
Flexible Space Management
FourFold and SixFold Panel Sets allow panels to stack to the right, left, or center as needed
Smooth Operation
Gothic arch rollers with double row ball bearings ensure frictionless movement
Seamless Aesthetics
Multipurpose frame insert creates a clean appearance and conceals cabling
Experience the Neuwall Difference
For over 15 years, we've earned the trust of architects, builders, and design professionals with our innovative operable wall systems.
