Movable Frameless Glass Wall
Series 40 Frameless Glass Walls
Transform spaces with elegance and functionality using Neuwall's top-hung, omni-directional glass partitions. Experience seamless transitions and modern design.
Explore Technical Specs Request ConsultationUnparalleled Features
Neuwall Series 40 frameless glass walls combine sophisticated design with innovative engineering to create truly transformative architectural elements.
Omni-Directional Movement
Individually movable panels that navigate intersections and turns with precision. Experience unprecedented flexibility in room configuration.
Frameless Design

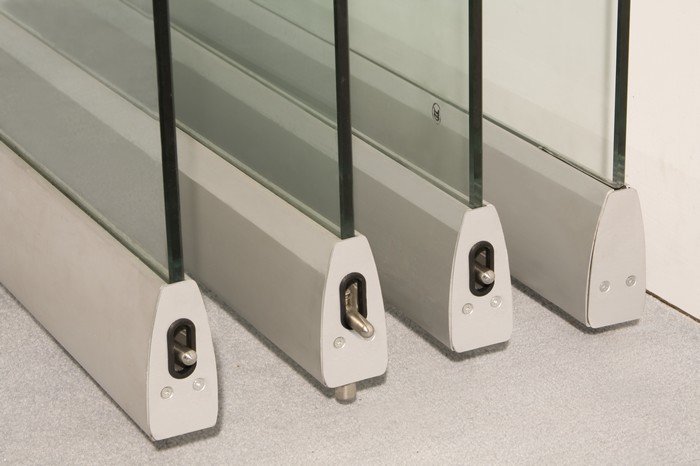

12mm thick tempered glass panels with no vertical framing create a seamless visual experience and maximize natural light flow between spaces.
Top-Hung System
Advanced overhead suspension system with precision-engineered trolleys allows for smooth, silent operation without floor tracks for a clean, minimalist aesthetic.
Technical Specifications
Engineered for performance with premium materials and precision manufacturing

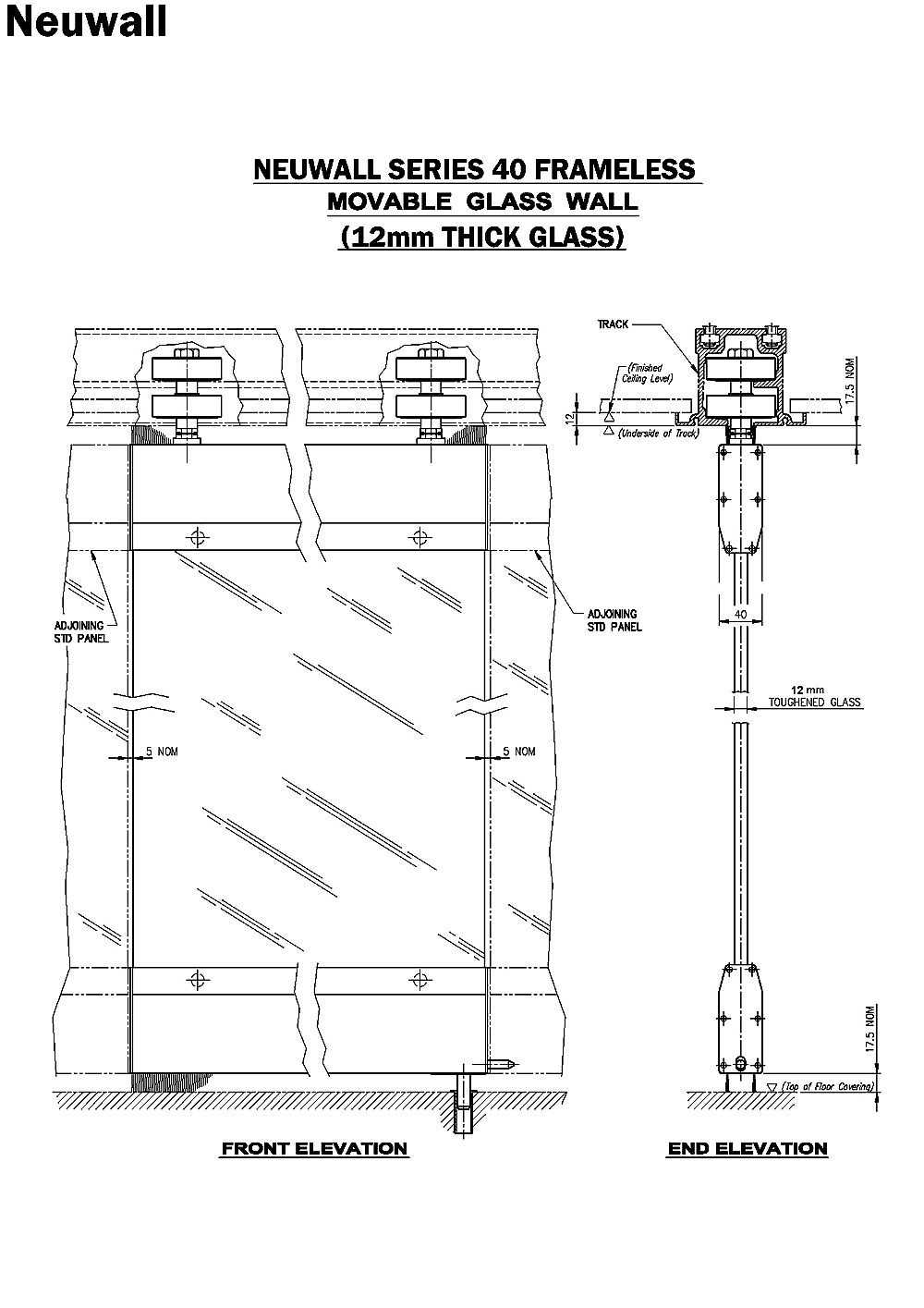

Series NG40 Frameless Glass Wall
Our innovative system combines architectural elegance with practical functionality. Each component is engineered to exacting standards for exceptional performance.
| Specification | Details |
|---|---|
| Glass Thickness | 12mm Tempered Safety Glass |
| Maximum Height | 9'10" (3.0 meters) |
| Panel Width | Up to 48" (1219mm), Custom Sizes Available |
| Weight Capacity | 30.00 Kg/m² (for 12mm glass) |
| Track System | Anodized Aluminum Alloy 6063-T6 |
| Carriers | Two 2-wheeled Counter-Rotating Trolleys per Panel |
| Finishing Options | Silver Anodized, Powder Coating, Stainless Steel, Brass |
| Glass Options | Clear, Bronze, Grey, Opaque, Sand Blasted, Silk Printing |
Customization Options
Tailor your glass walls to meet specific design requirements with our premium customization options

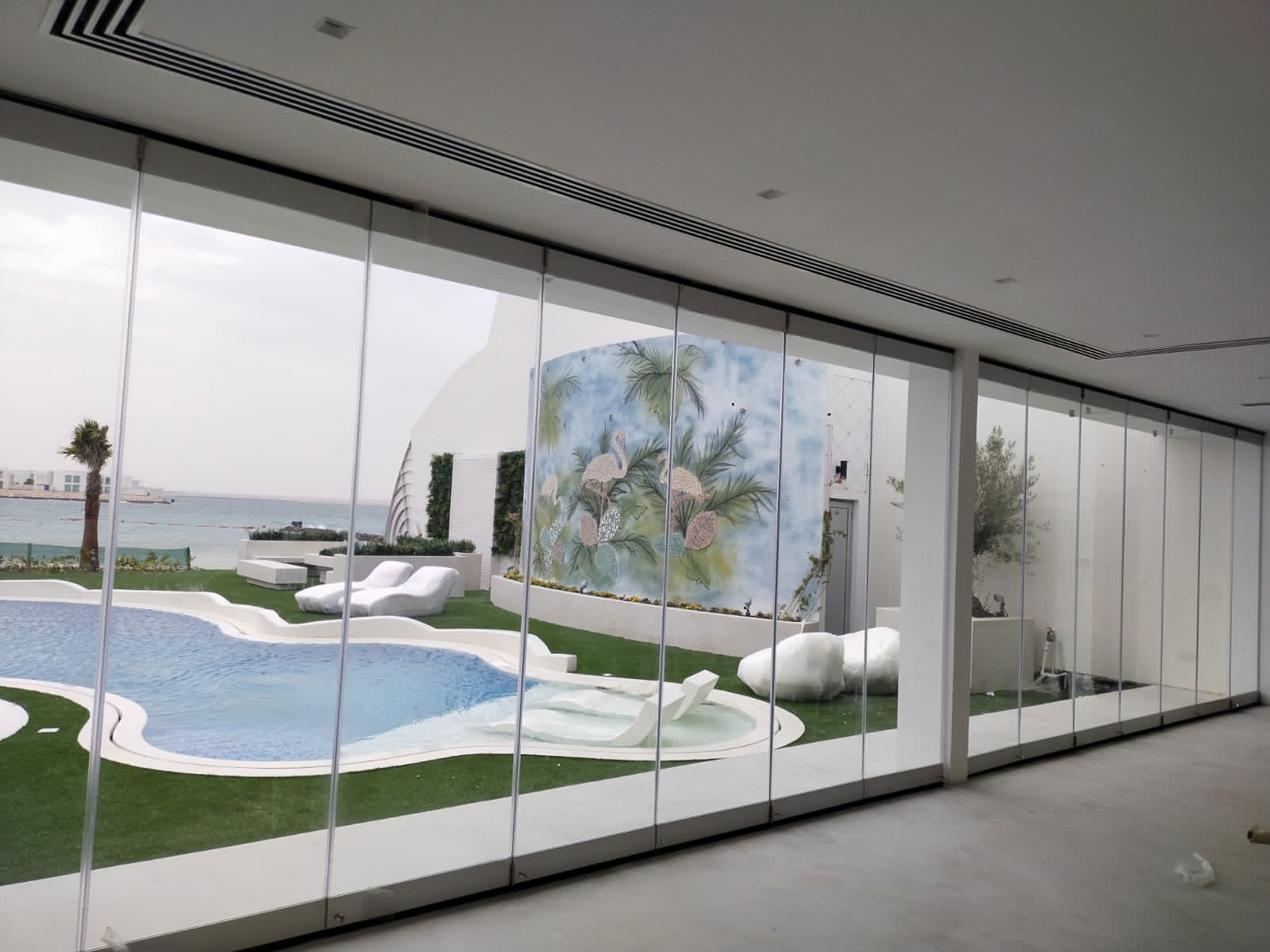

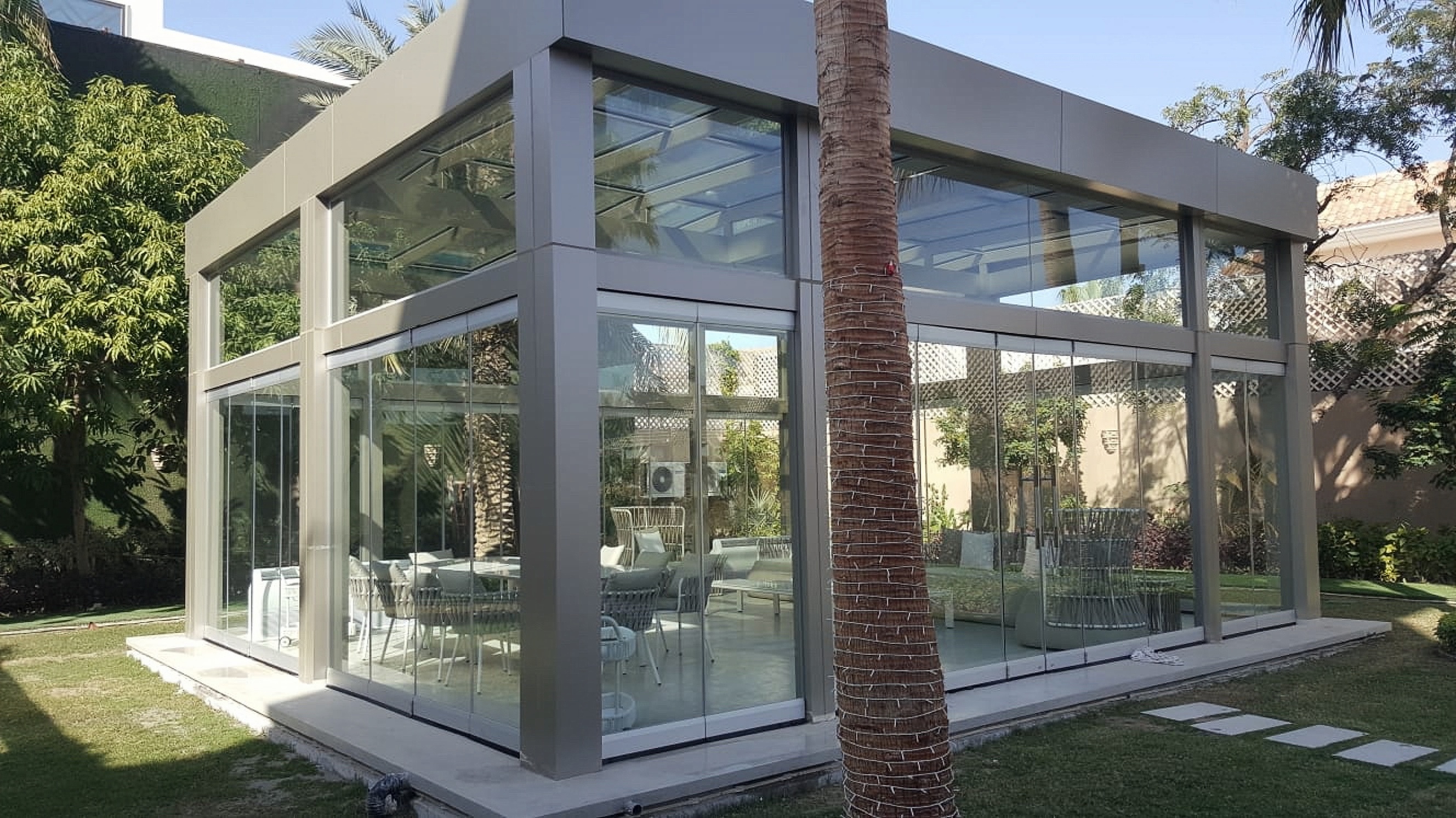

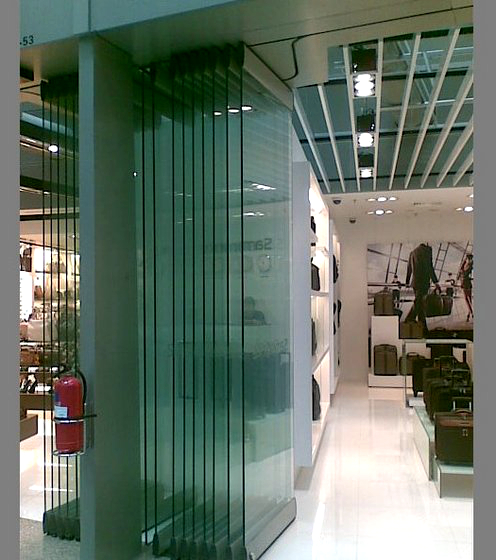

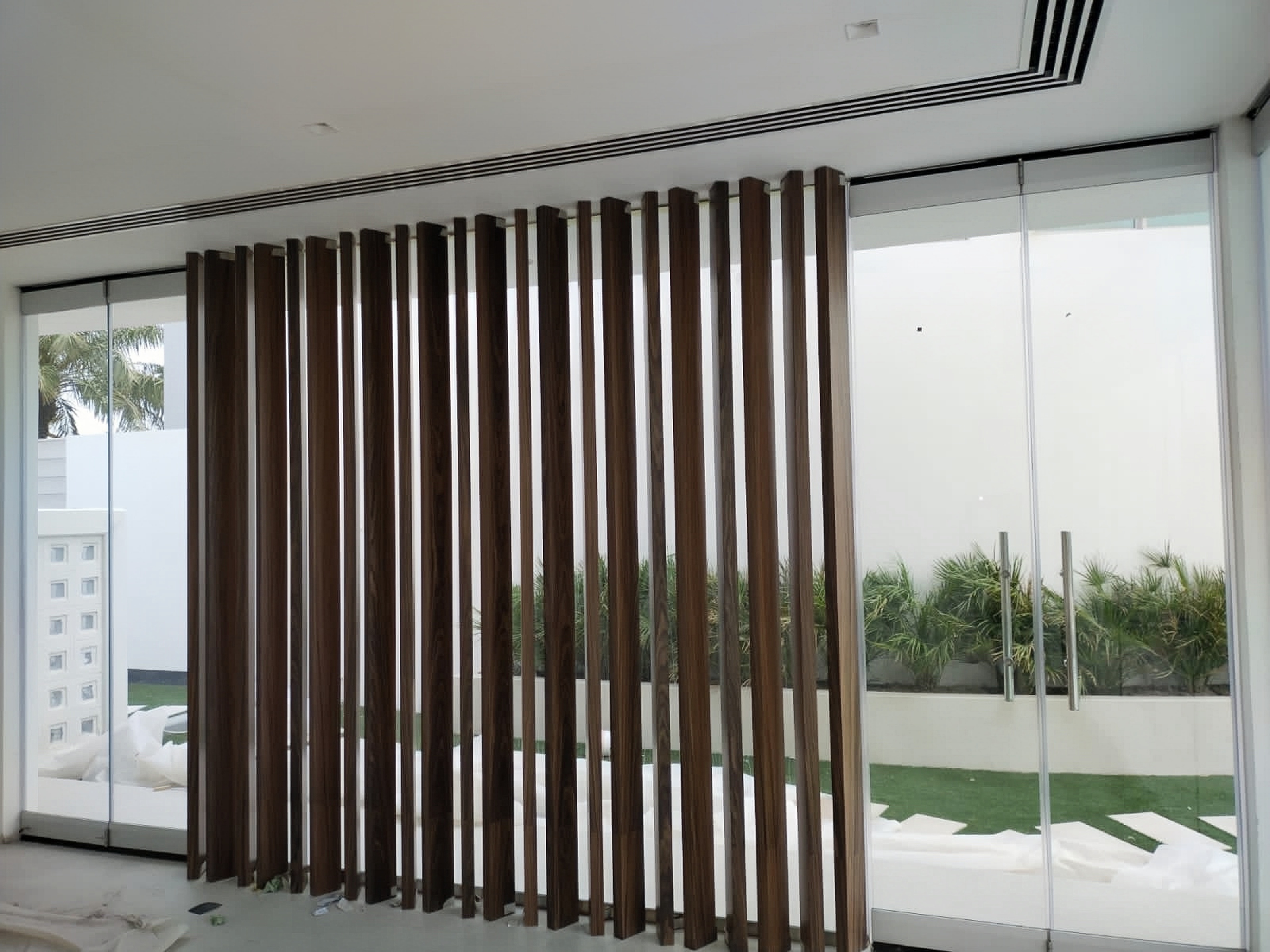

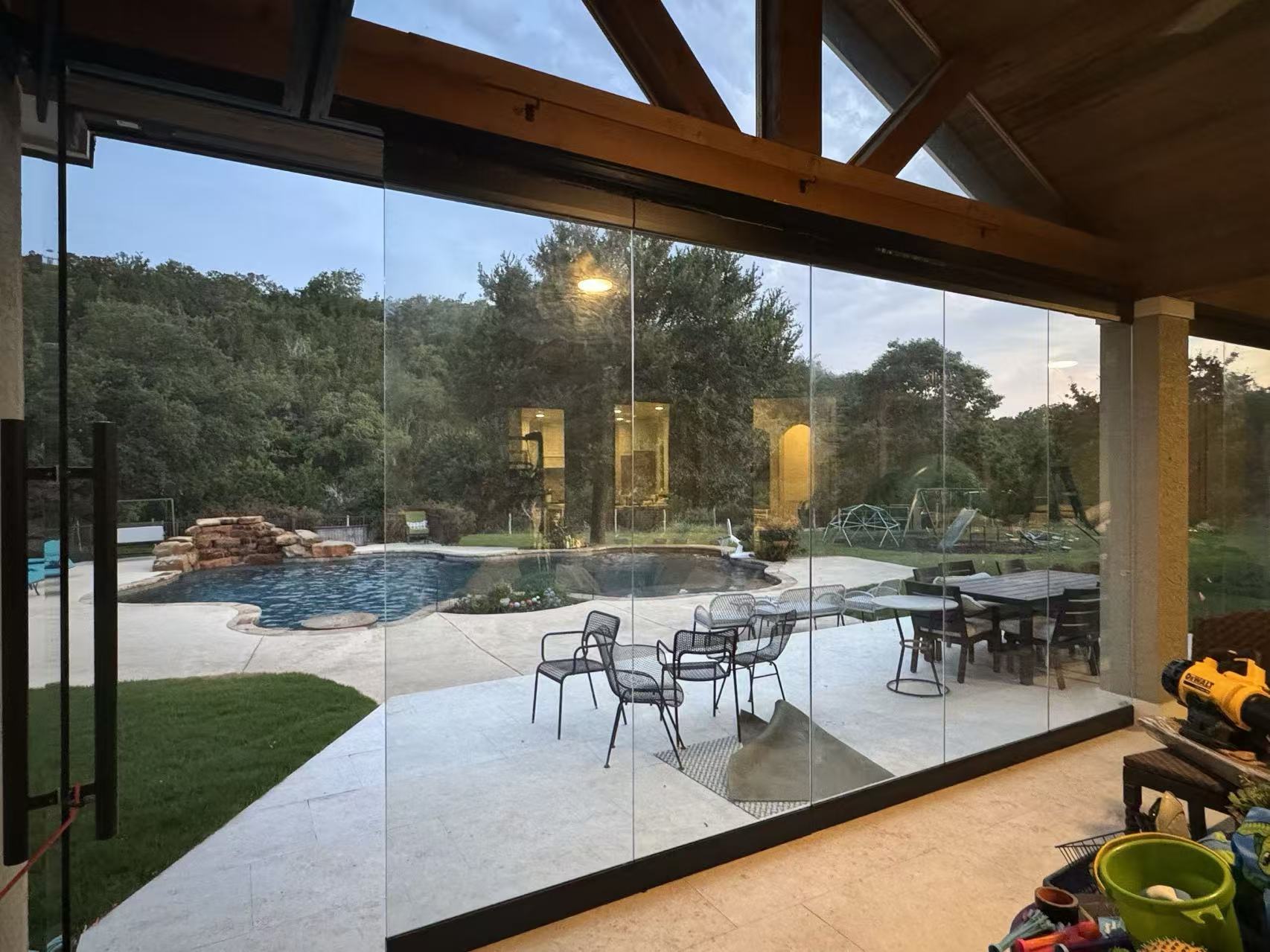

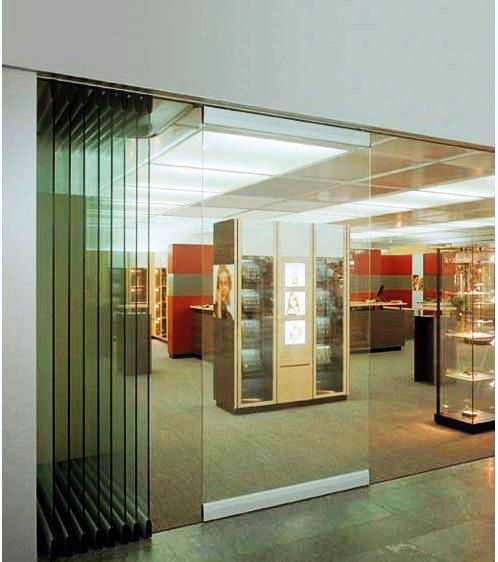

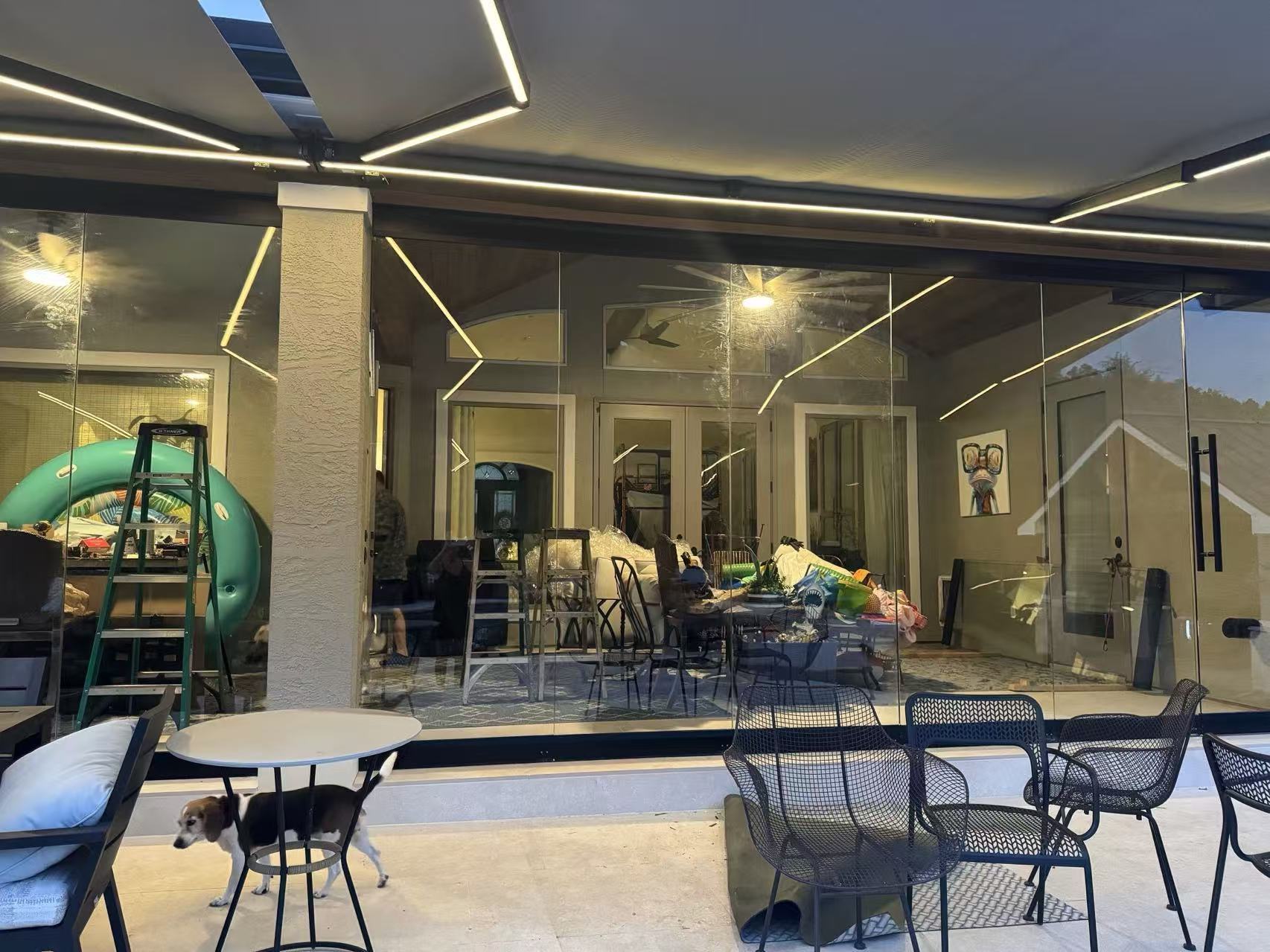

Design Gallery
Discover the transformative potential of our frameless glass walls in various architectural settings
