Movable Partition Walls
Movable walls (also known as operable partitions, sliding partitions, or acoustic room dividers) are innovative architectural systems designed to transform large spaces into smaller, functional areas in minutes. Ideal for commercial, educational, and hospitality settings, these walls offer unmatched versatility, sound insulation, and aesthetic integration.
Professional Movable Partition Walls
Creating flexible spaces for modern architecture with innovative, high-quality partition solutions
About Us
Leading manufacturer of high-quality movable partition systems since 2009
Redefining Flexible Spaces
Founded in 2009, NEUWALL is headquartered in Shanghai, China. We specialize in developing high-quality, cost-effective, and energy-efficient building materials, particularly our full-height movable wall systems including the NW821, NW835, NW840 series and Ultra-high Partition Walls.
Our movable partition systems are designed for every aspect of modern facilities, including executive and general offices, conference rooms, training facilities, and storage areas. Our team of professionals works closely with clients to develop wall systems that maximize workspace efficiency.
We Offer:
- A full professional design service
- Survey and installation guidance
- Top quality materials and components
- Experienced work team
- Maintenance contracts to ensure optimal performance
Our Products
Comprehensive range of movable partition solutions for every application

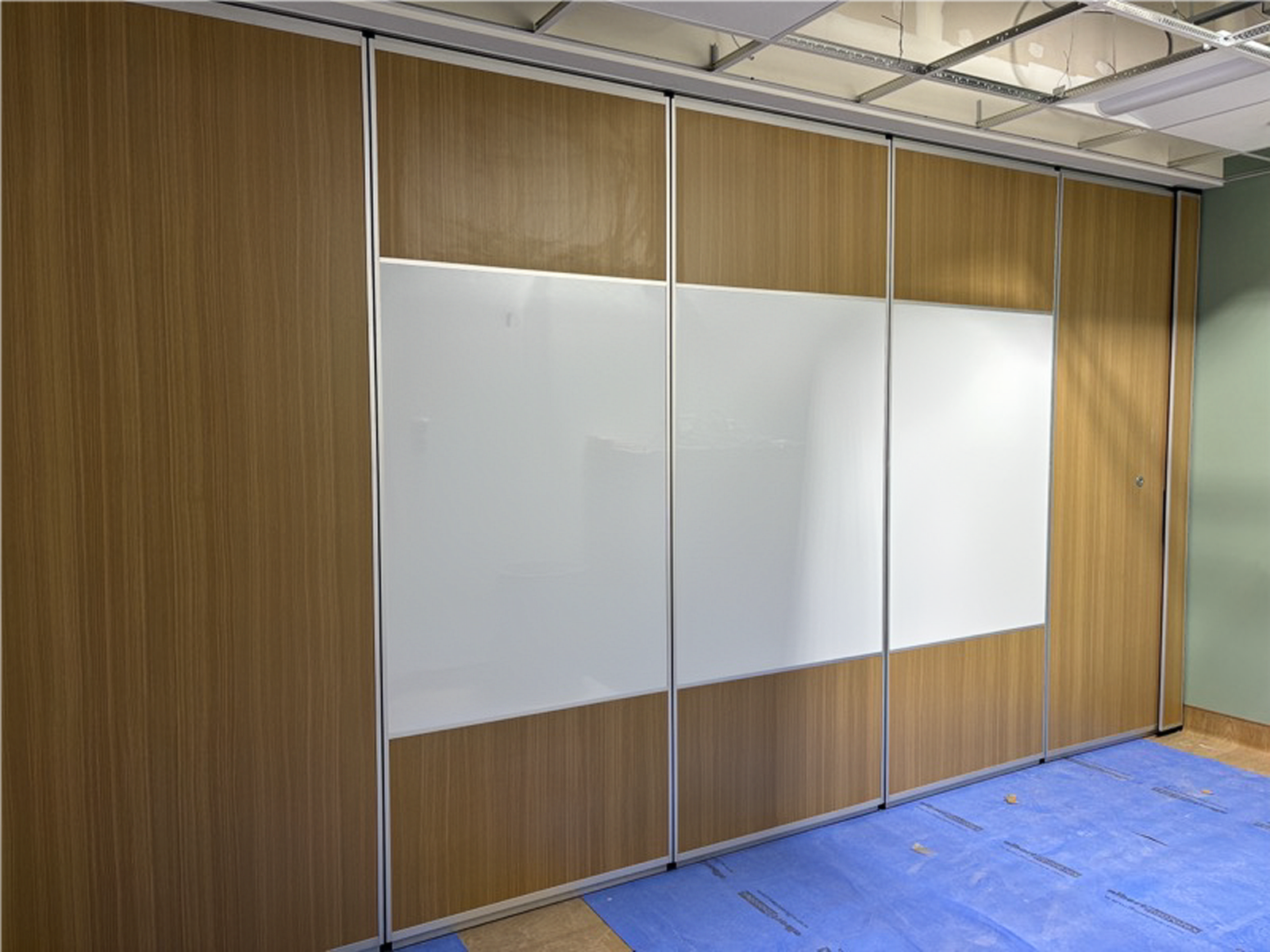

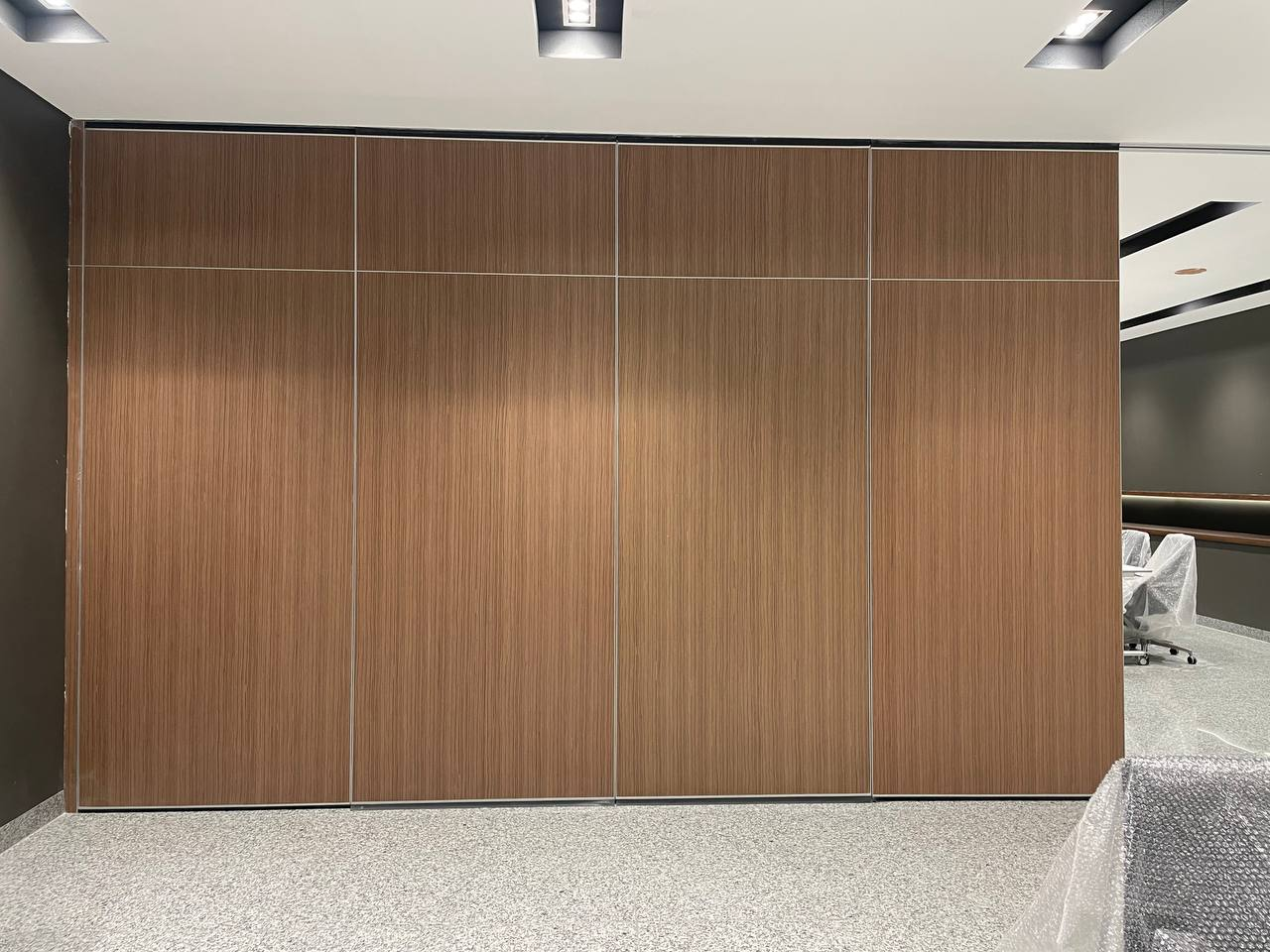

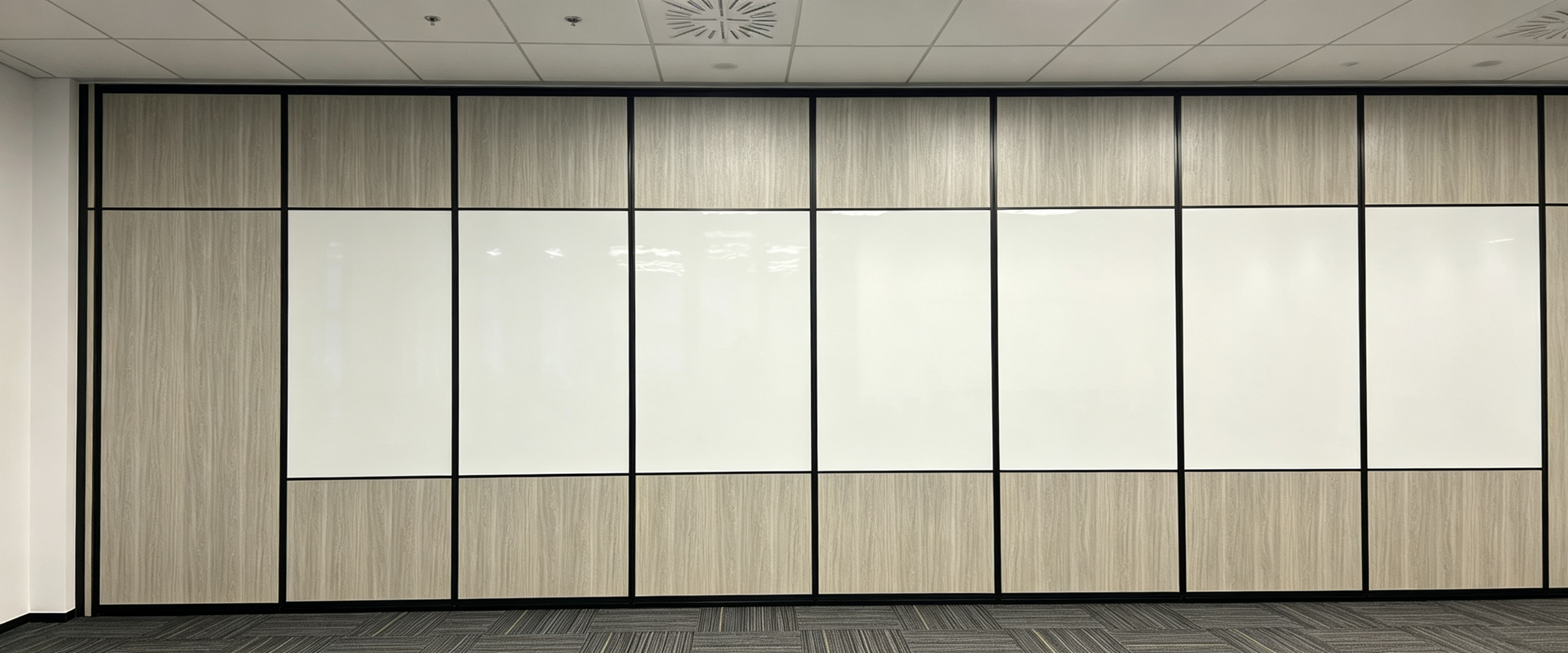

Mono Partitions

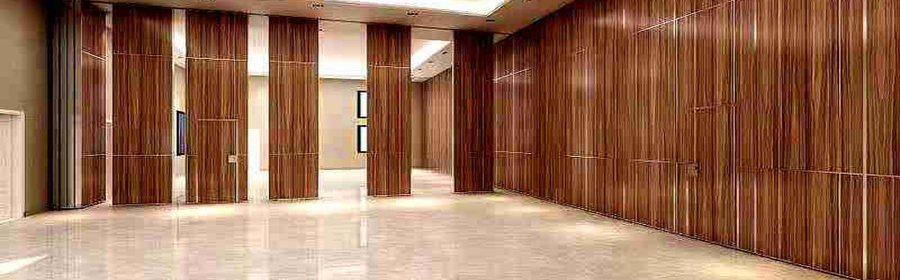

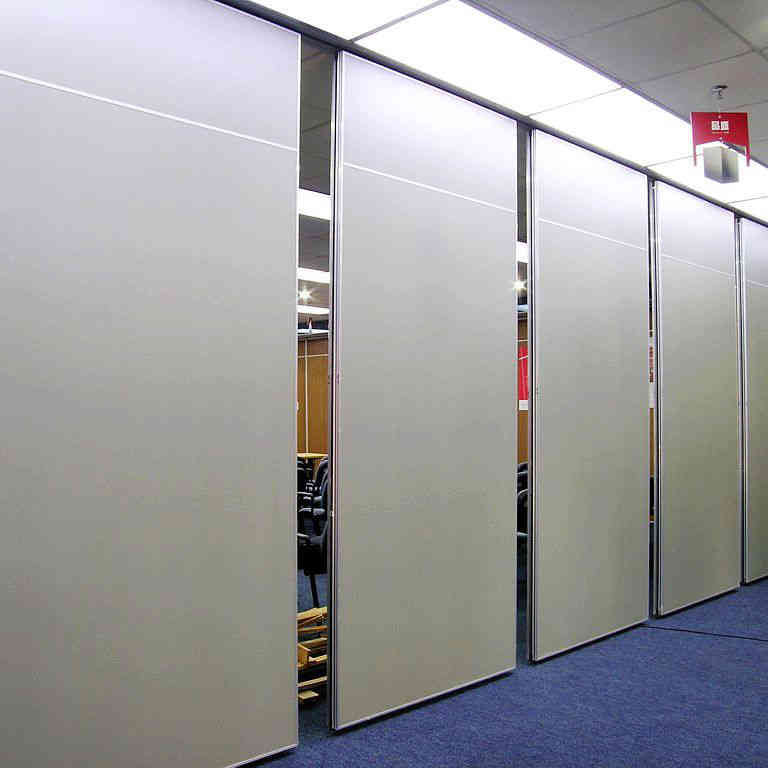

A top-hung movable wall system with individually operated interlocking panels featuring retractable seals top and bottom. When closed, it has the appearance of a permanent wall.

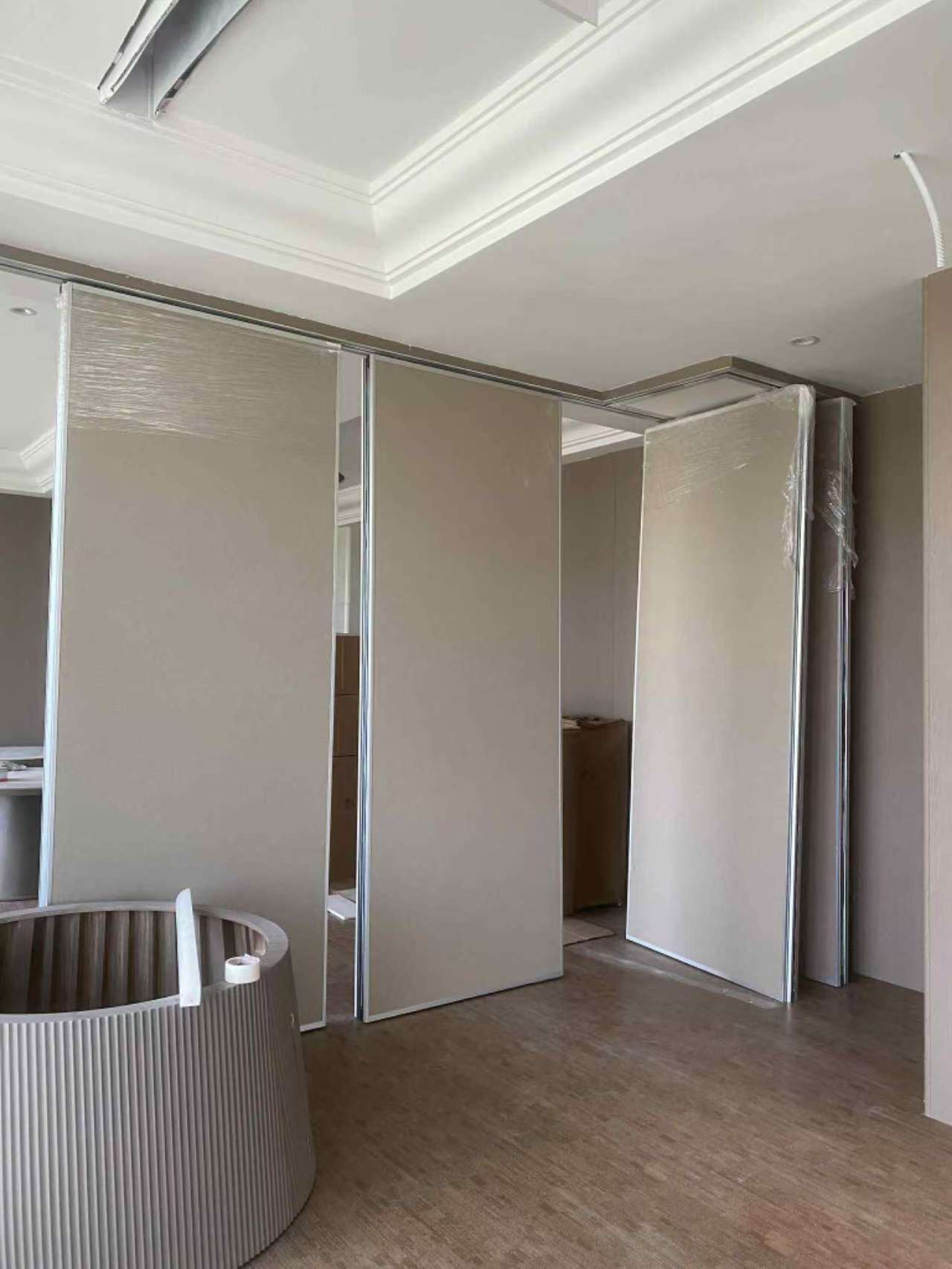

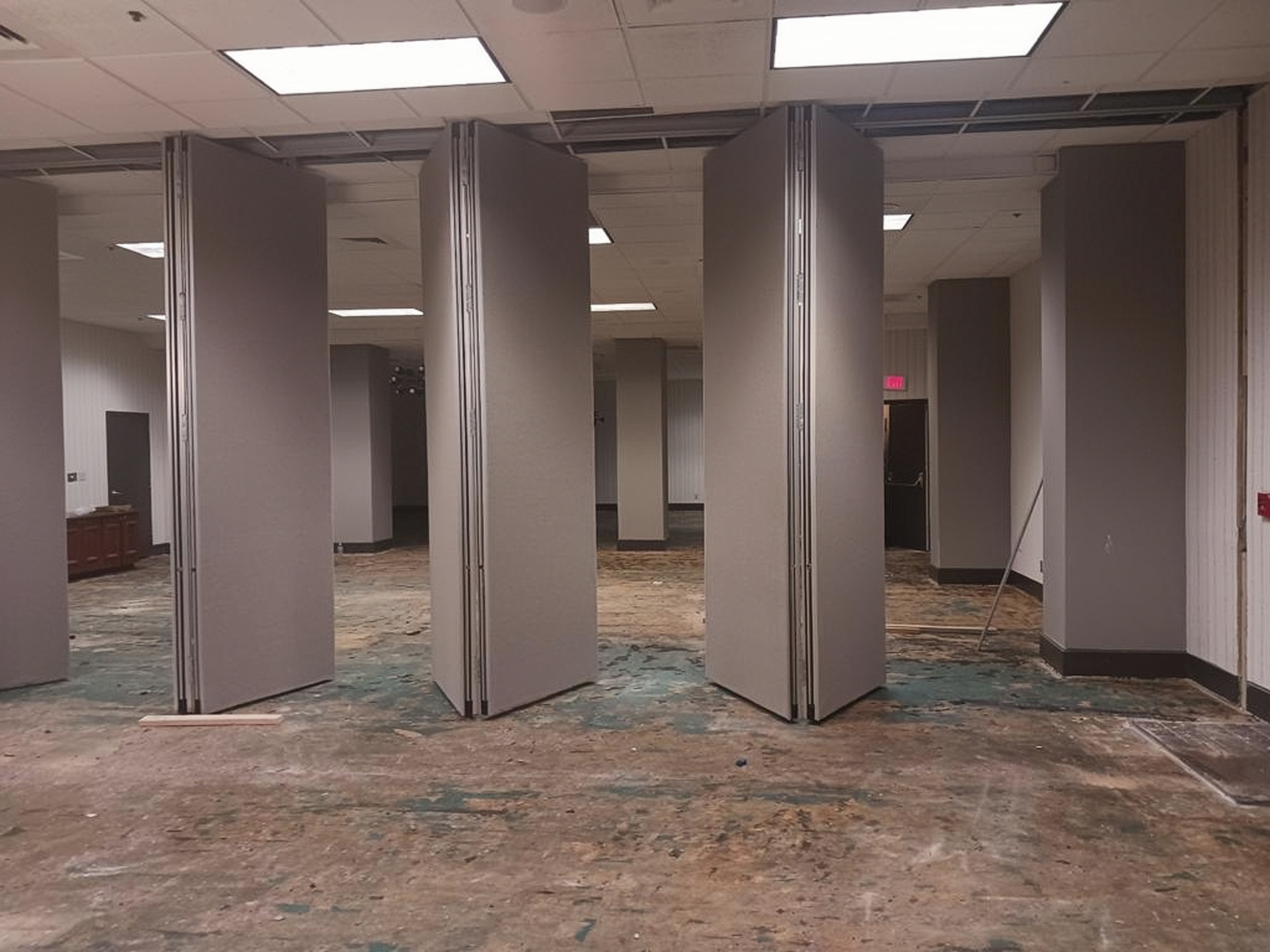

Multi Partitions

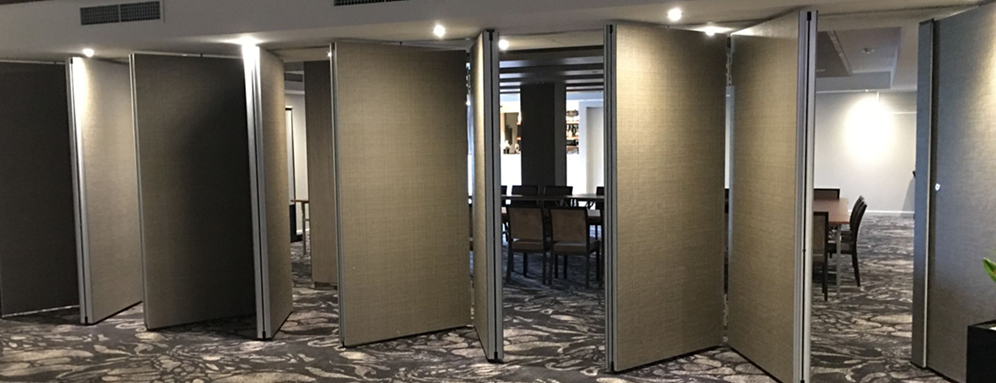

A top-hung movable wall system with hinged connected panels that offer excellent sound insulation effect, perfect for creating temporary or permanent room divisions.

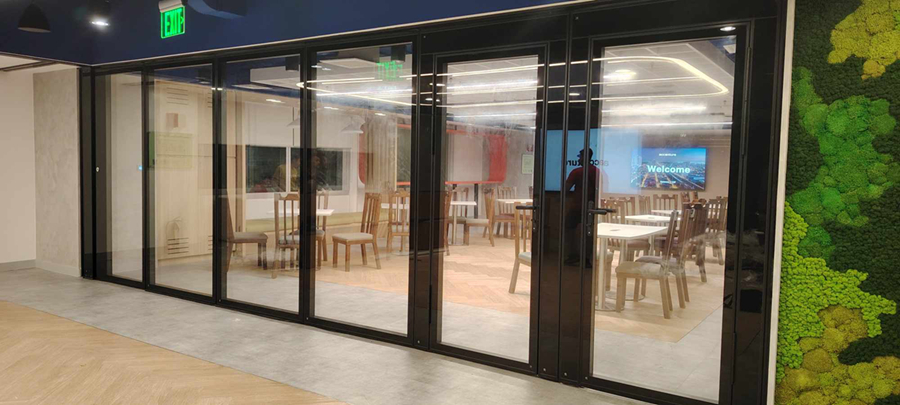

Glass Walls
Widely used in offices, hotels, restaurants, and shops. Made with tempered glass and available in movable, folding, fixed and sliding configurations for transparent divisions.

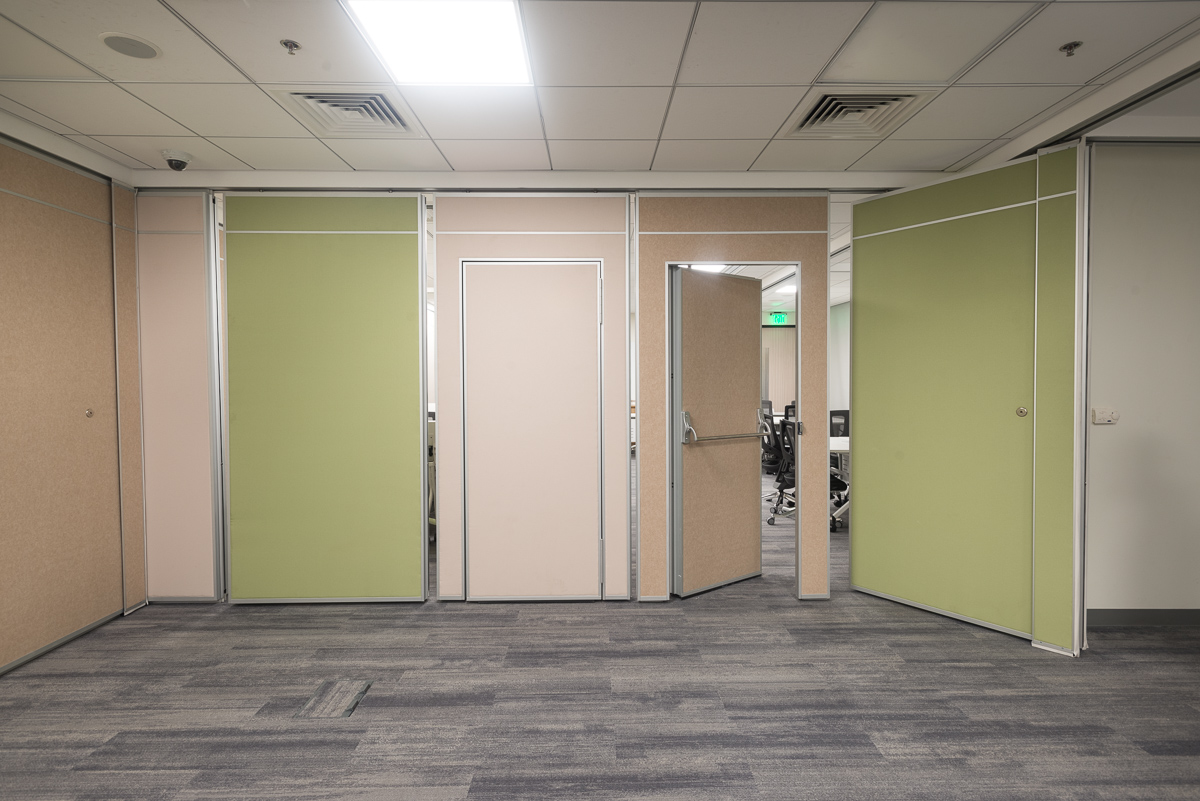

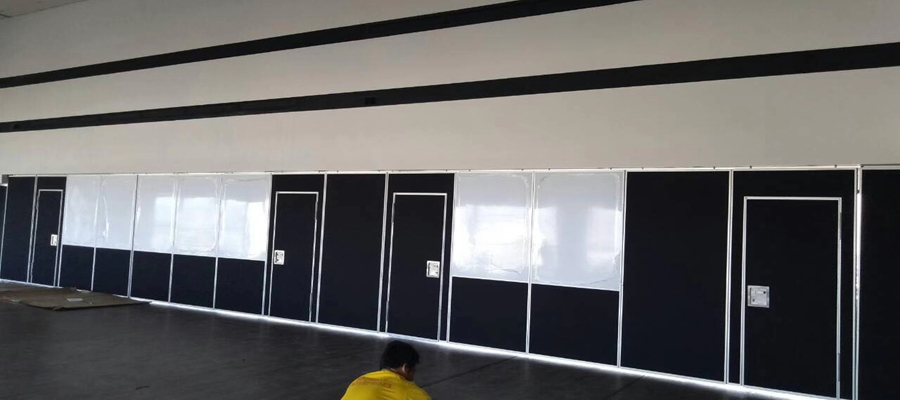

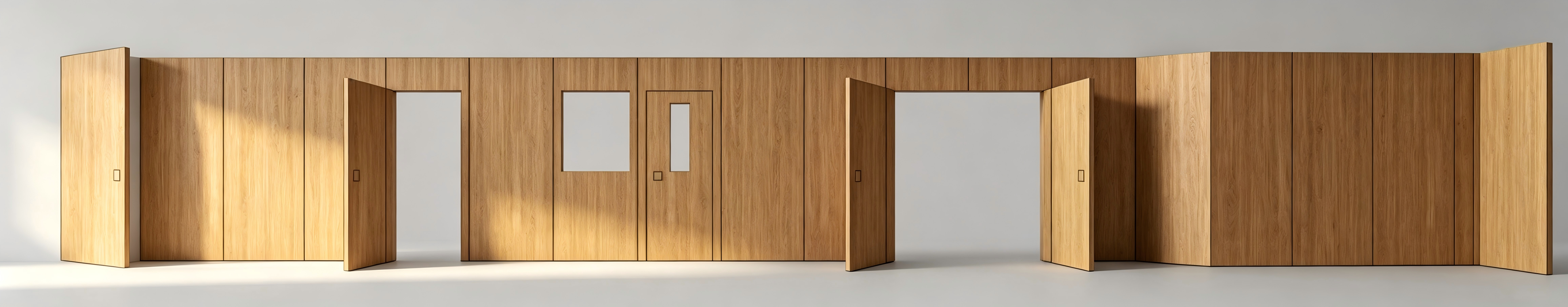

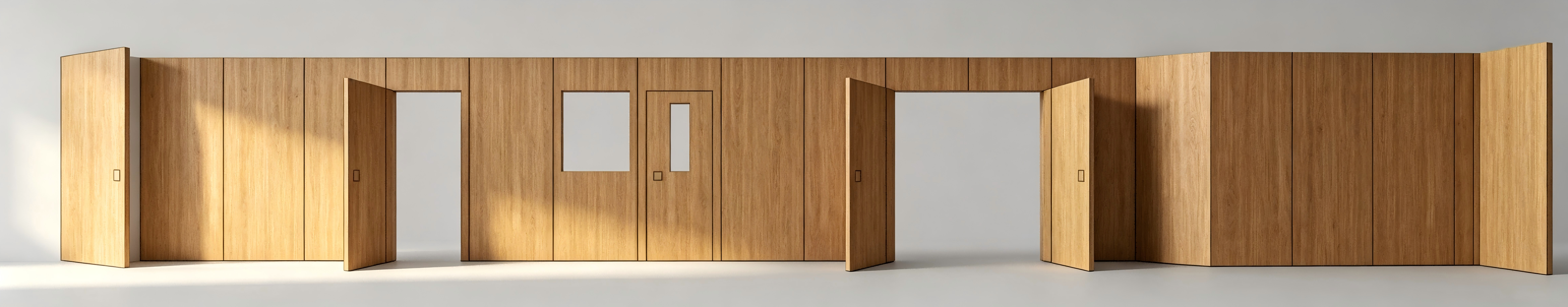

Pass Door Systems
Integrated pass doors within partition panels provide convenient access between spaces without compromising acoustic performance or aesthetic design.
Technical Specifications
Detailed performance data for our movable partition systems
| Specification | NW831 | NW840 | NW840-W |
|---|---|---|---|
| Panel Suspension | Top hung only | Top hung only | Top hung only |
| Track System | Single or double point roller | Single or double point roller | Single or double point roller |
| Panel Thickness | 80mm | 100mm | 92mm OR 100mm |
| Panel Height | Up to 4000mm | Up to 6000mm | Up to 6000mm |
| Max Height | 4000mm | 6000mm | 6000mm |
| Panel Width | 600mm to 1200mm | 600mm to 1200mm | 600mm to 1200mm |
| Panel Construction | Aluminum, Anodized, 1.8mm | Aluminum, Anodized, 1.8mm | Steel, 2mm |
| Bottom Material | MDF, 9mm | MDF, 13mm | MDF, 13mm |
| Vertical Profiles | Aluminum, Anodized with sealing | Aluminum, Anodized with sealing | Aluminum Exposed Edge with sealing |
| Retractable Seals | Aluminum, Black with double rubber seals | Aluminum, Black with double rubber seals | Aluminum, Black with triple rubber seals |
| Operation of seals | Manual, with supplied operating lever | Manual, with supplied operating lever | Manual, with supplied operating lever |
| Face Materials | Fabric, Vinyl, HPL or Customized | Fabric, Vinyl, HPL or Customized | Fabric, Vinyl, HPL or Customized |
| Soundproof | 40,43,45dB Rw | 45,48,50dB Rw | 50,53,55dB Rw |
| Weight | Approx 38-40kg/sqm | Approx 40-45kg/sqm | Approx 48-52kg/sqm |
Features & Benefits
Why choose NEUWALL movable partition systems
Superior Sound Insulation
Our systems offer various levels of sound reduction from 35dB to 58dB STC rating, ensuring privacy and quiet in any environment.
Flexible Configurations

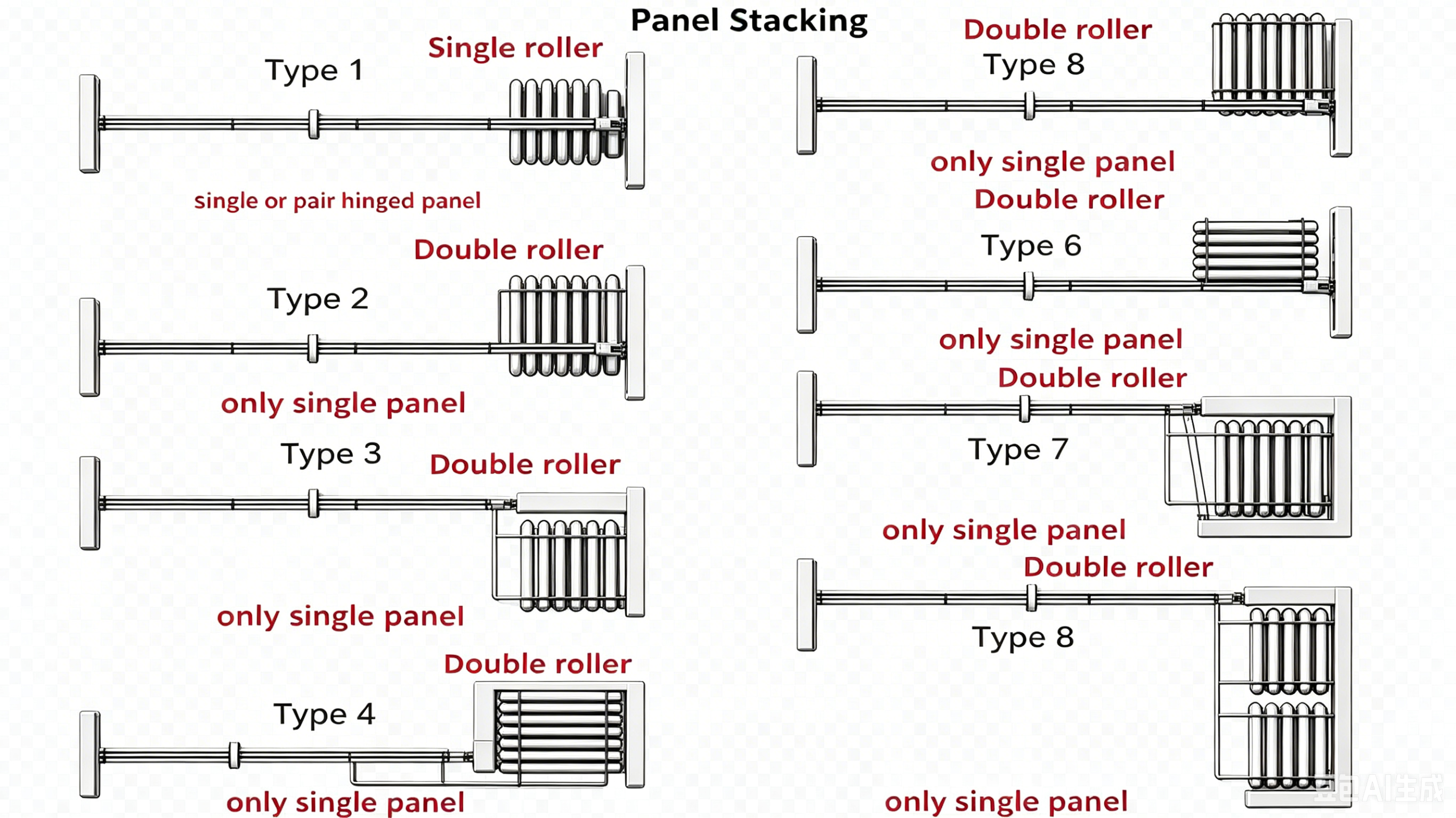

Numerous panel stacking options for complete flexibility in space division and storage to meet your specific requirements.
Easy Operation
Panels feature retractable seals that are extended and retracted by a single 180° turn of a removable operating handle.
Custom Finishes
Extensive range of surface finishes available including vinyl, fabric, wood veneer and custom options to match any interior design.
Integrated Pass Doors
Convenient pass doors can be incorporated enabling easy access to adjoining rooms without compromising the partition integrity.
Robust Construction
Braced and welded steel frames with magnetic male/female edges ensure durability and perfect alignment for long-lasting performance.

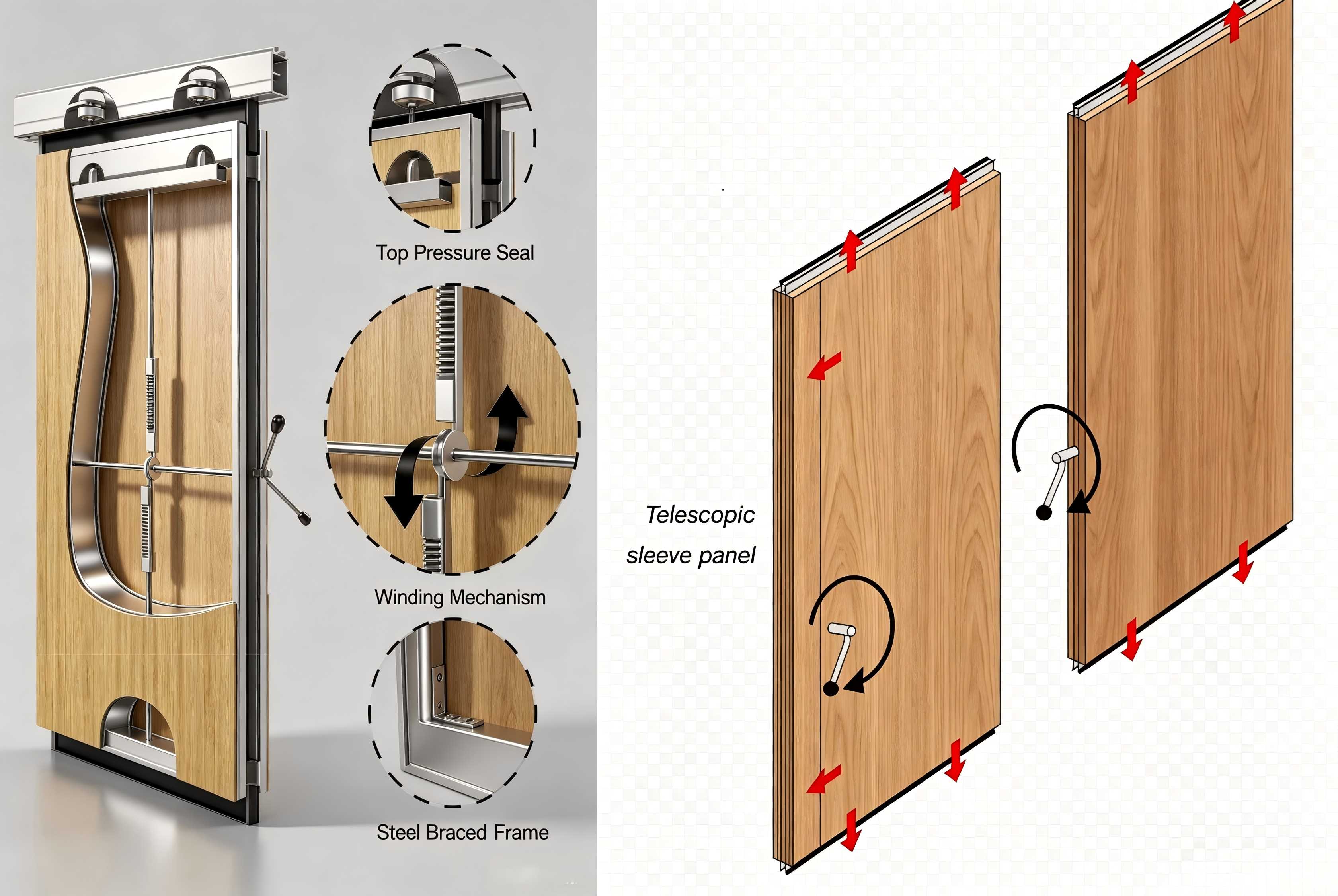

How It Works
Simple and efficient operation of our movable partition systems
Position Panels
Move panels along the track system to desired location with minimal effort.
Extend Seals
Turn the operating handle 180° to extend top and bottom pressure seals.
Secure Closure

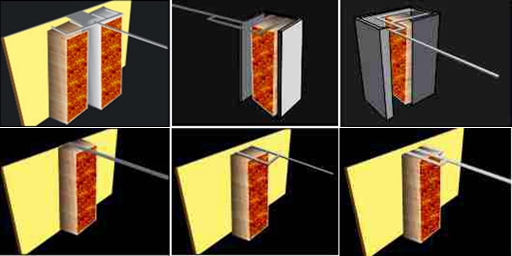

Extend telescopic sleeve on the final panel to complete the acoustic seal.
Enjoy Privacy
Experience excellent sound insulation and visual separation.
Quality Construction
Superior materials and engineering for lasting performance

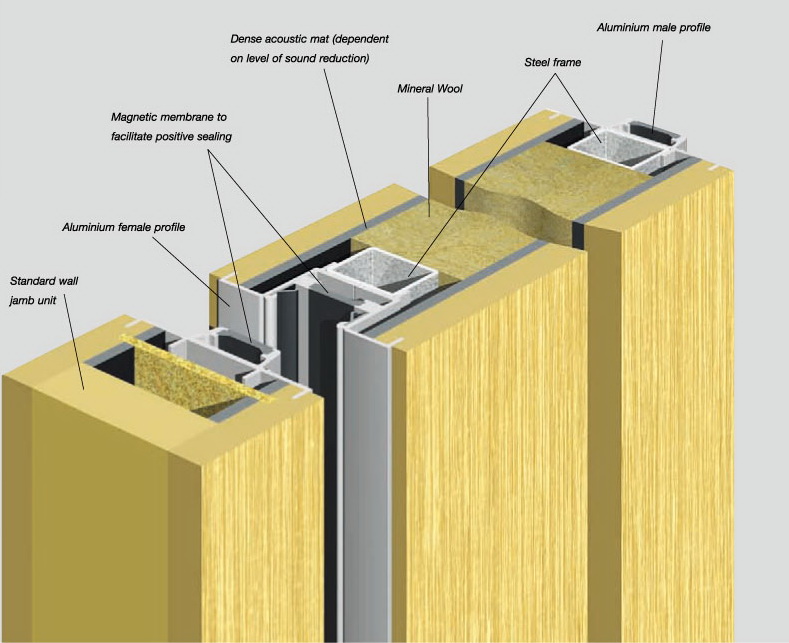

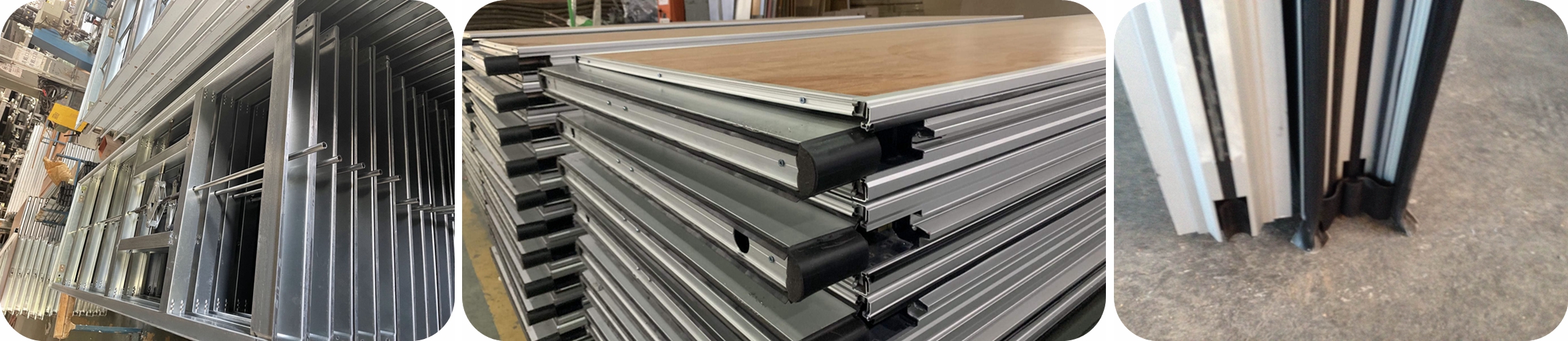

Built to Last

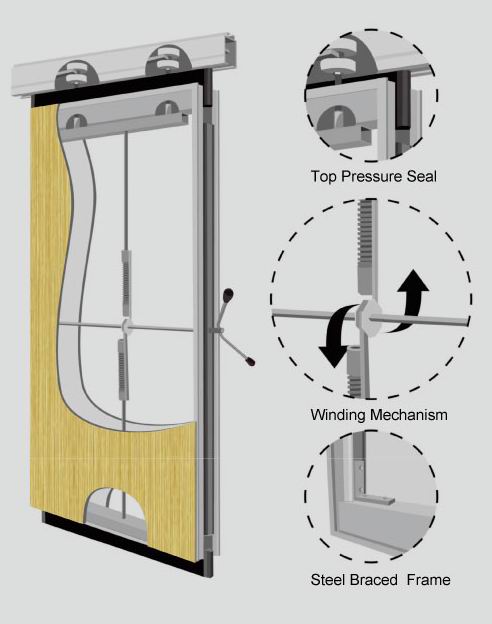

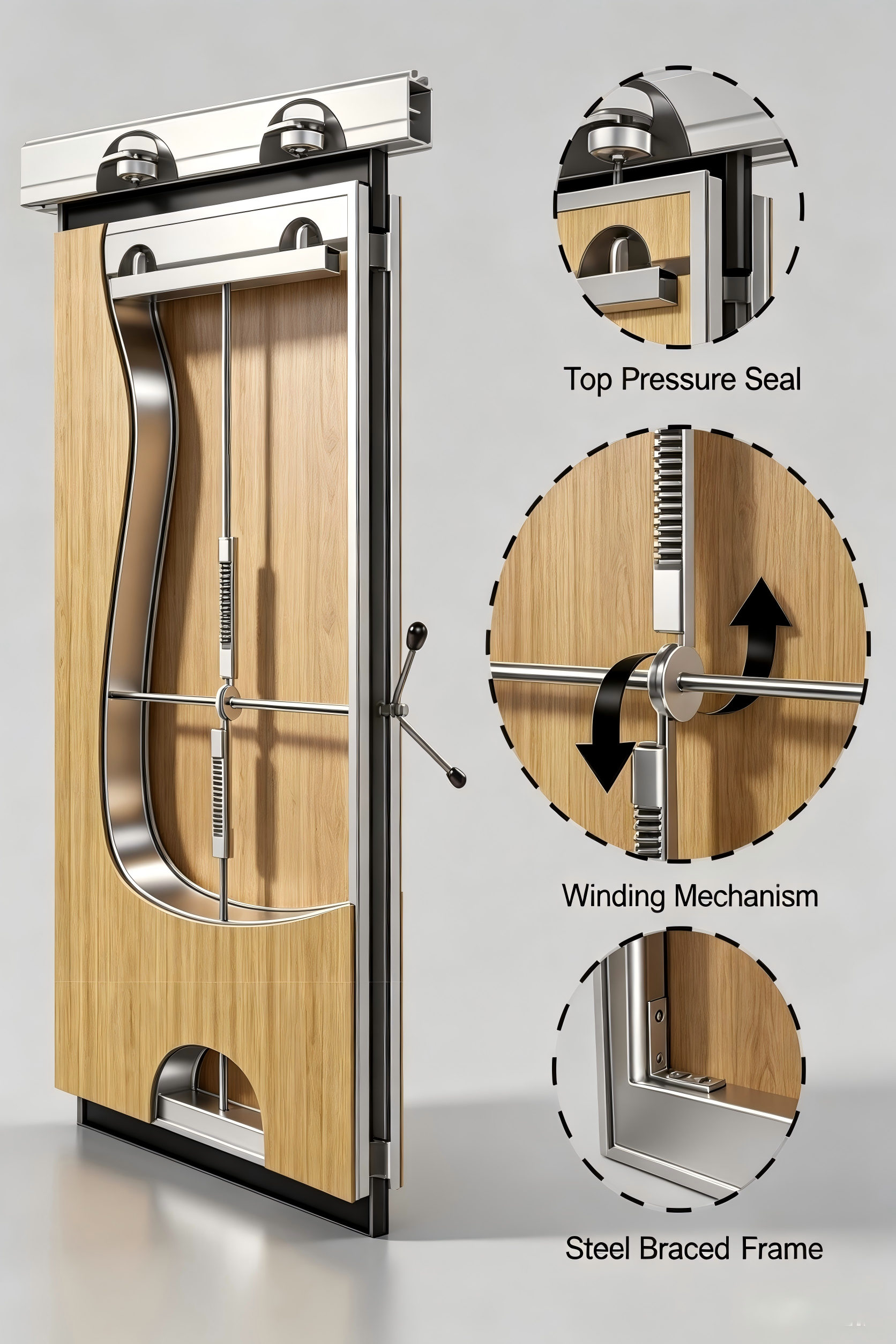

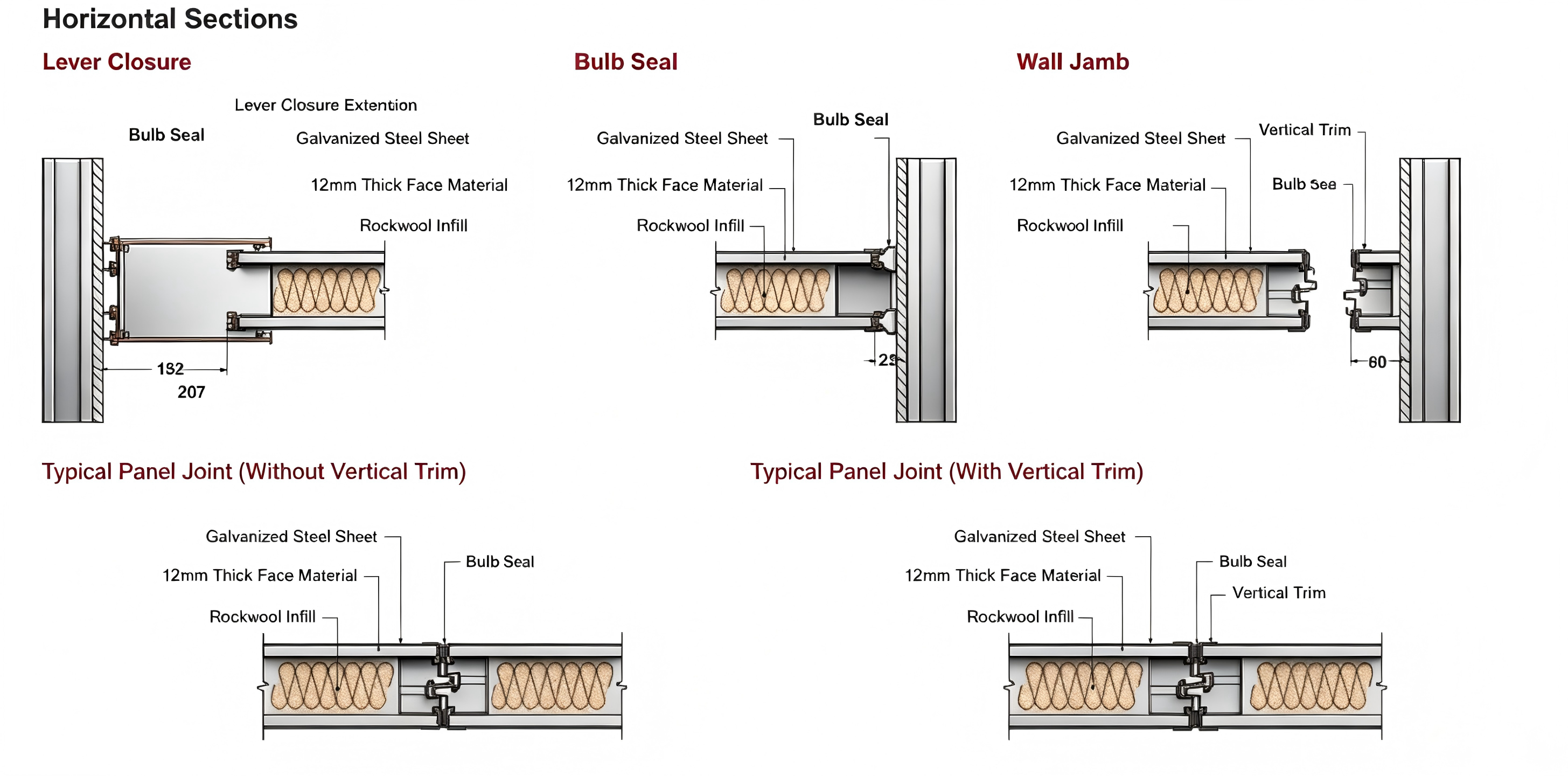

Our movable wall panels feature double-skin construction with a robust internal aluminum frame. The panel faces are not 'hard' fixed to the frame, preventing direct transfer of sound vibrations from one side to the other.
Key construction features include:

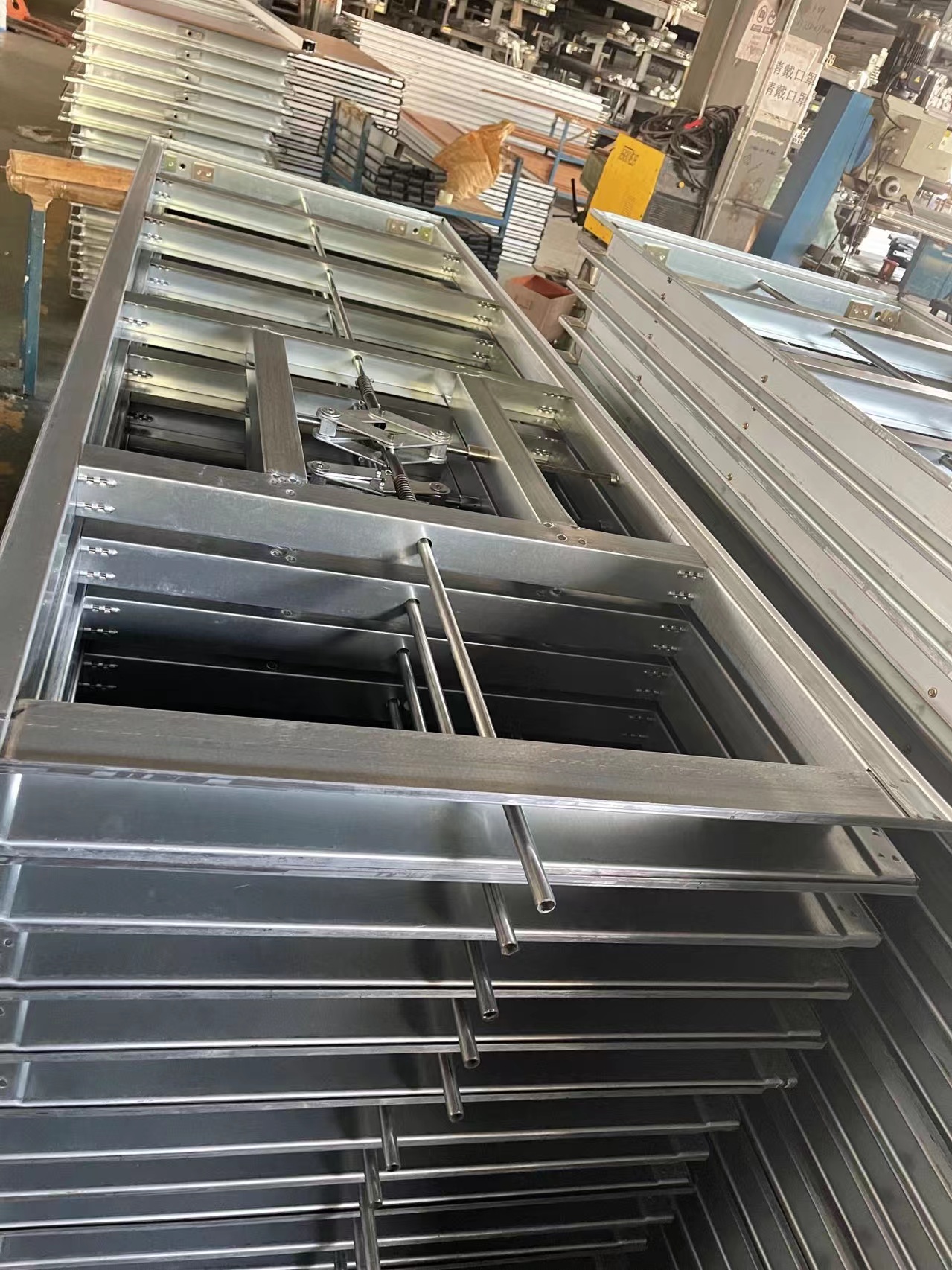

- Braced and welded steel frame for maximum durability
- Magnetic male and female edges for perfect alignment
- Heavy duty rubber gaskets ensuring maximum acoustic sealing
- Rubberized bitumen membranes and mineral wool insulation
- 2kn top and bottom seal pressure for superior sound reduction
- Choice of exposed or concealed edge profiles
Our Projects
NEUWALL movable partitions in prestigious installations worldwide
Embassy
Eden Project, CornwallGovernment Building

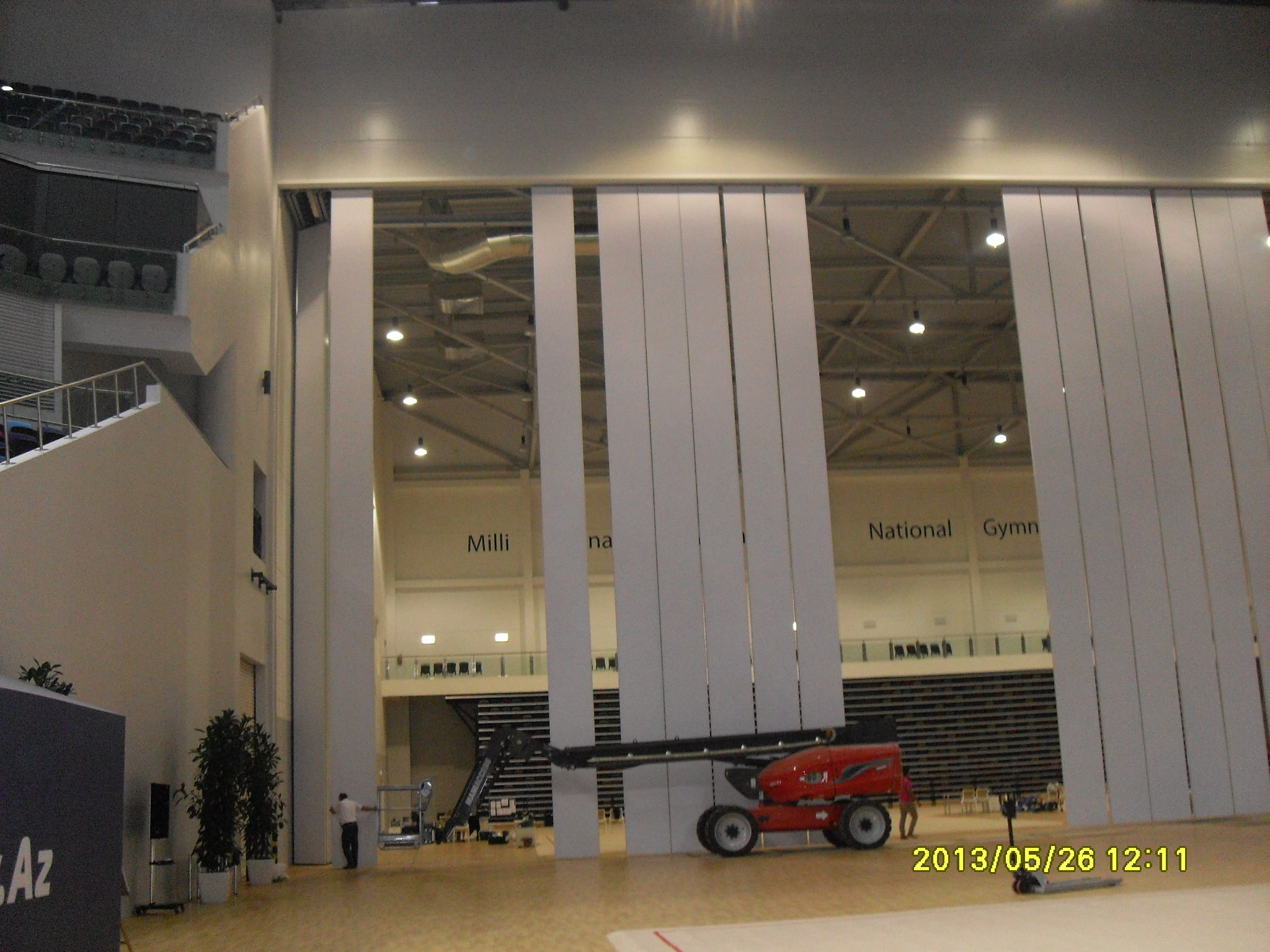

National Gymnasium Arena in Baku

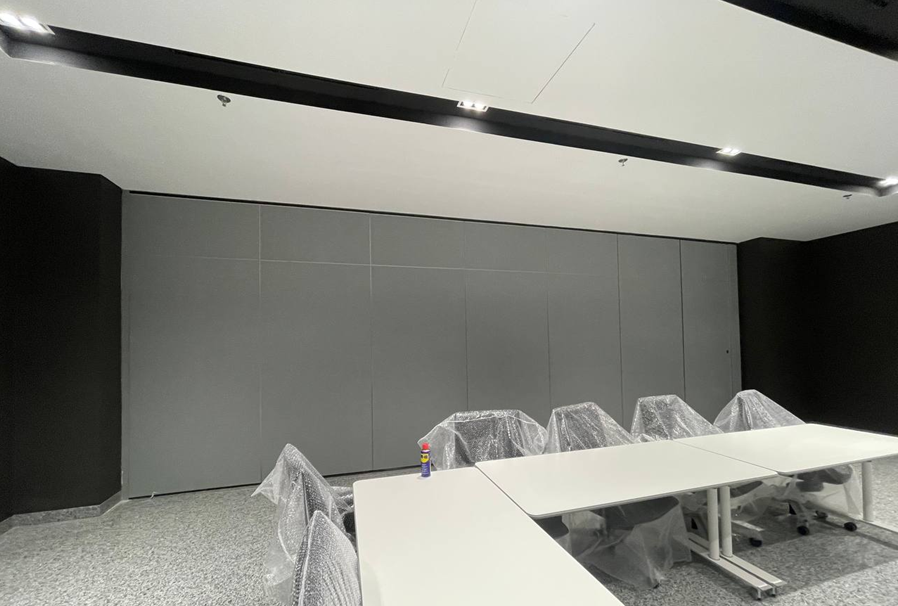

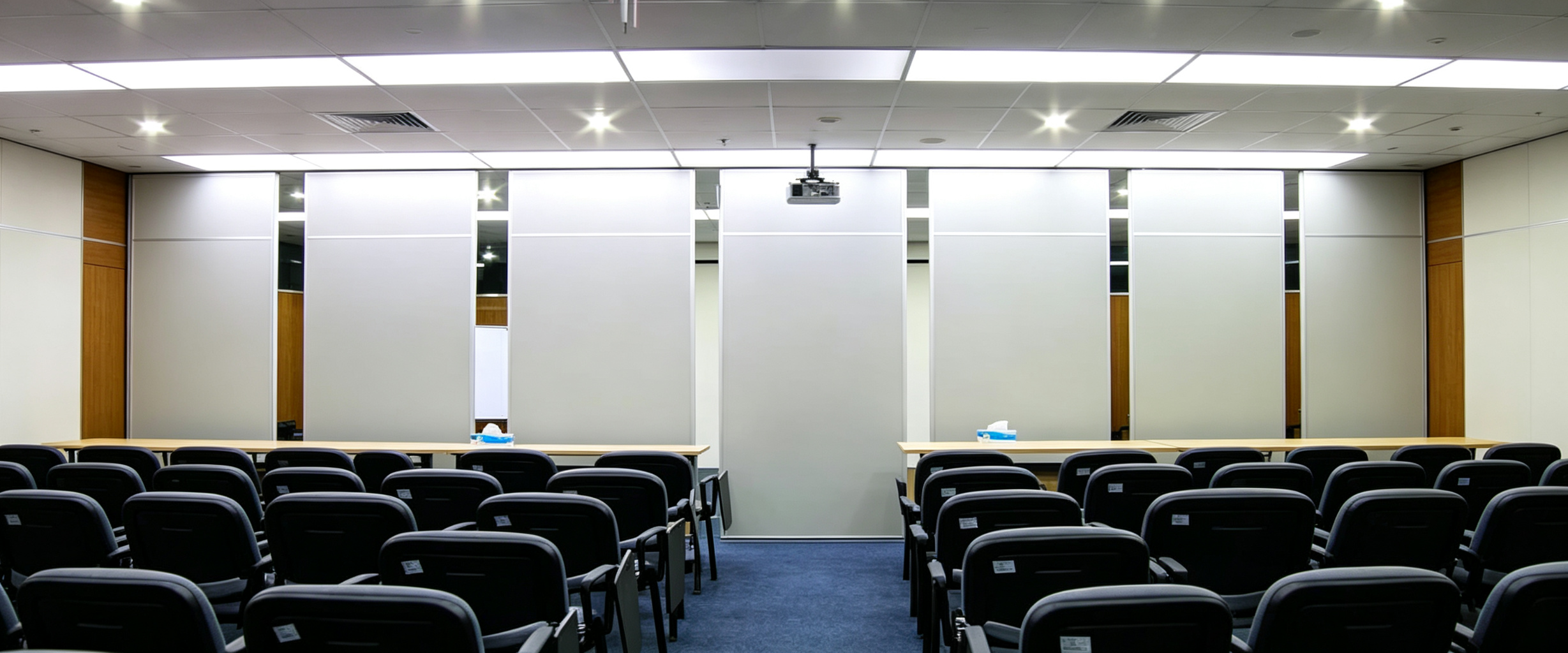

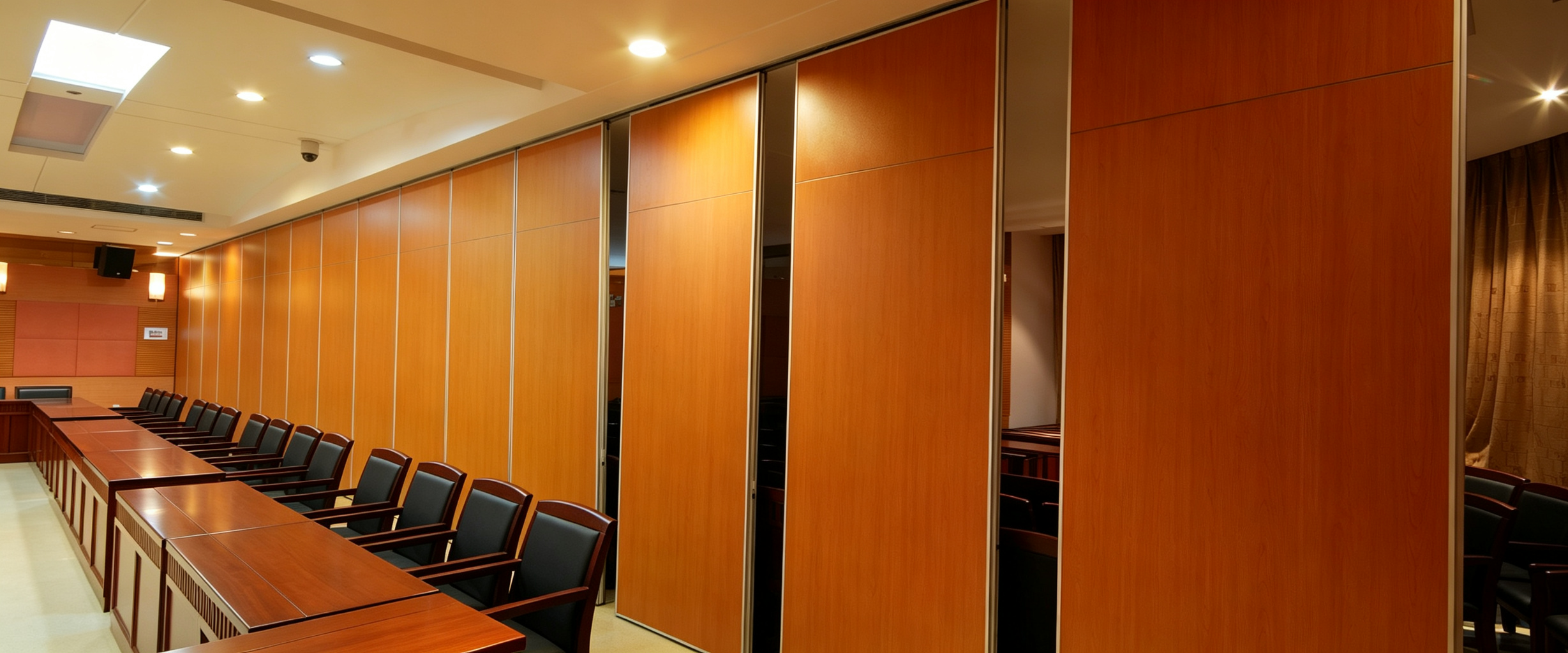

Conference Center

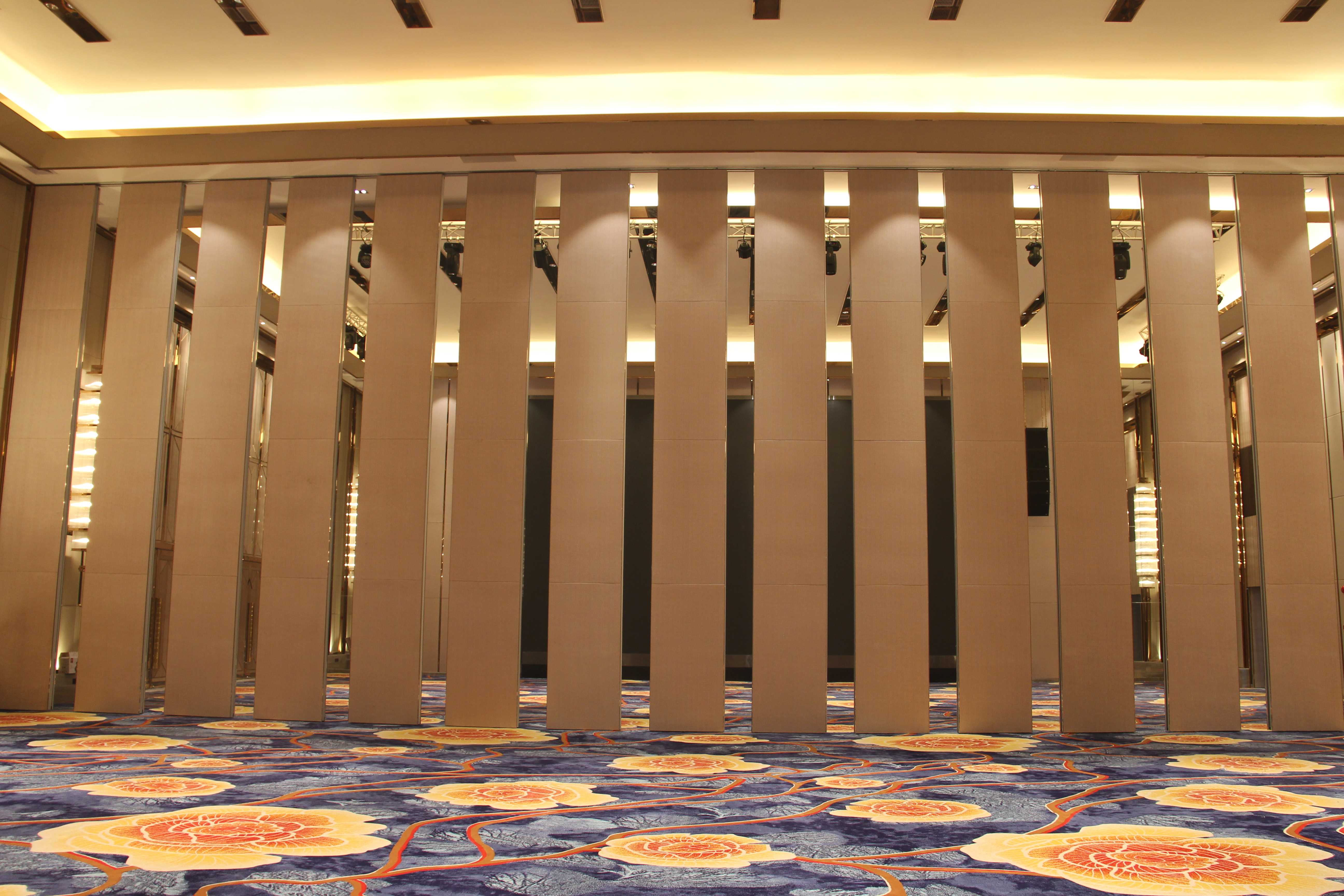

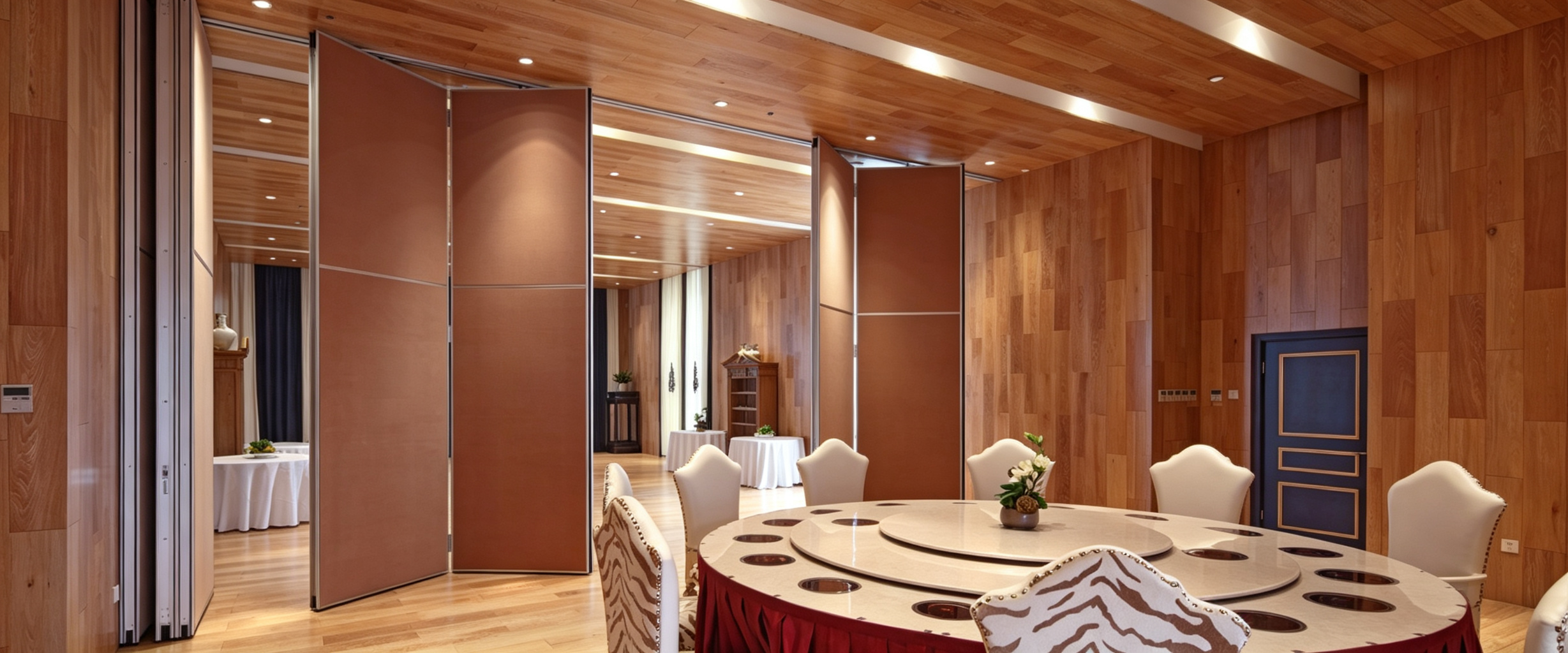

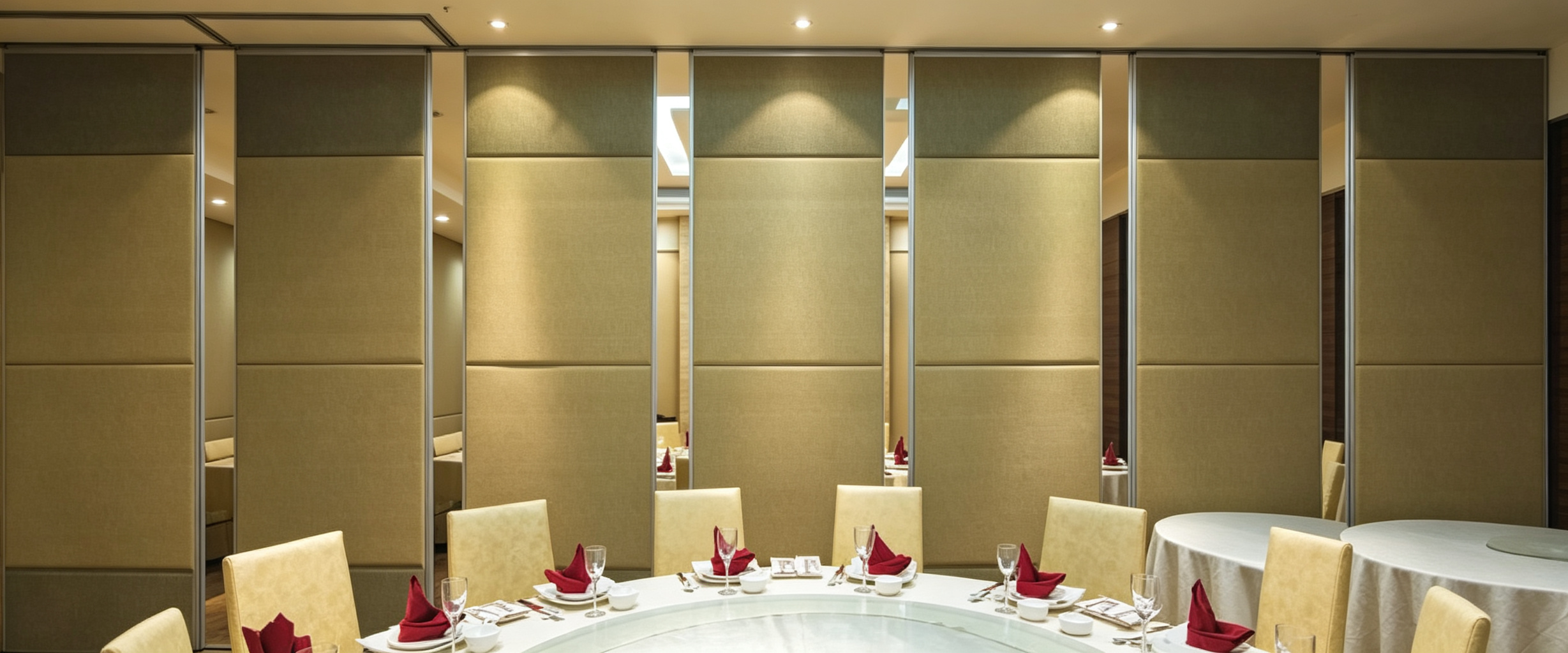

Hotel Banqueting

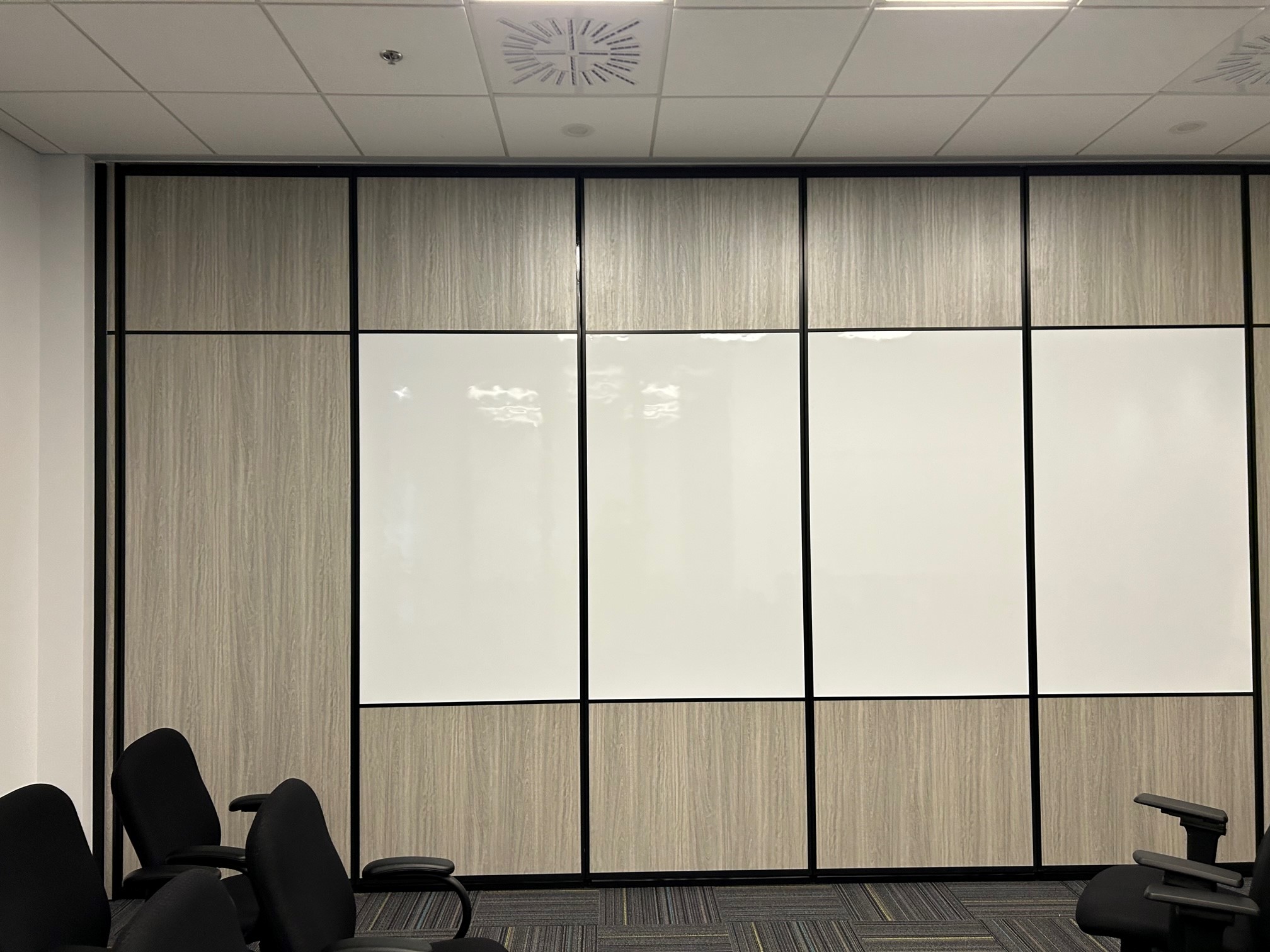

Luxury Hotel DivisionCorporate OfficeModern Workspace SolutionsHealthcare Facility

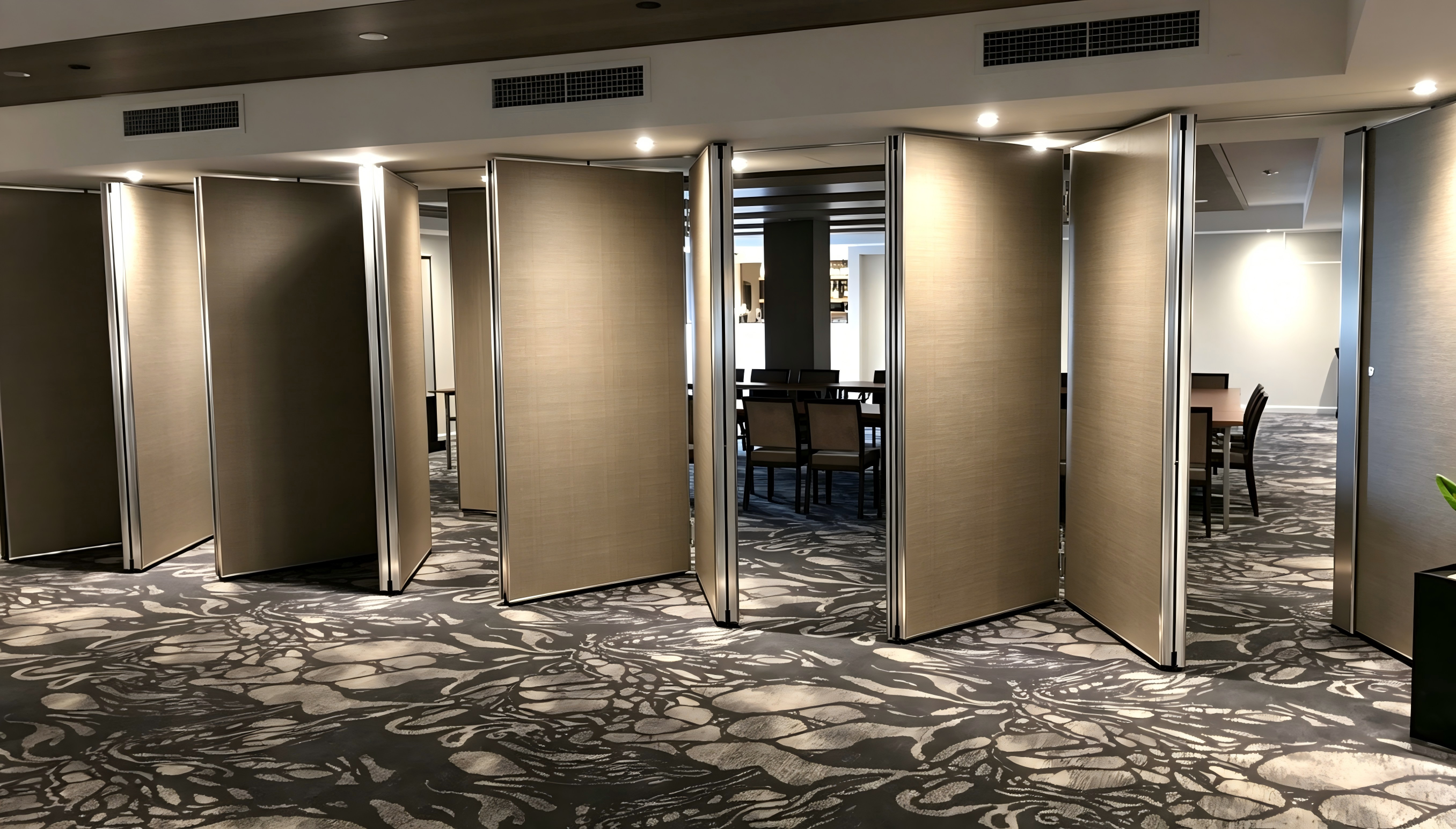

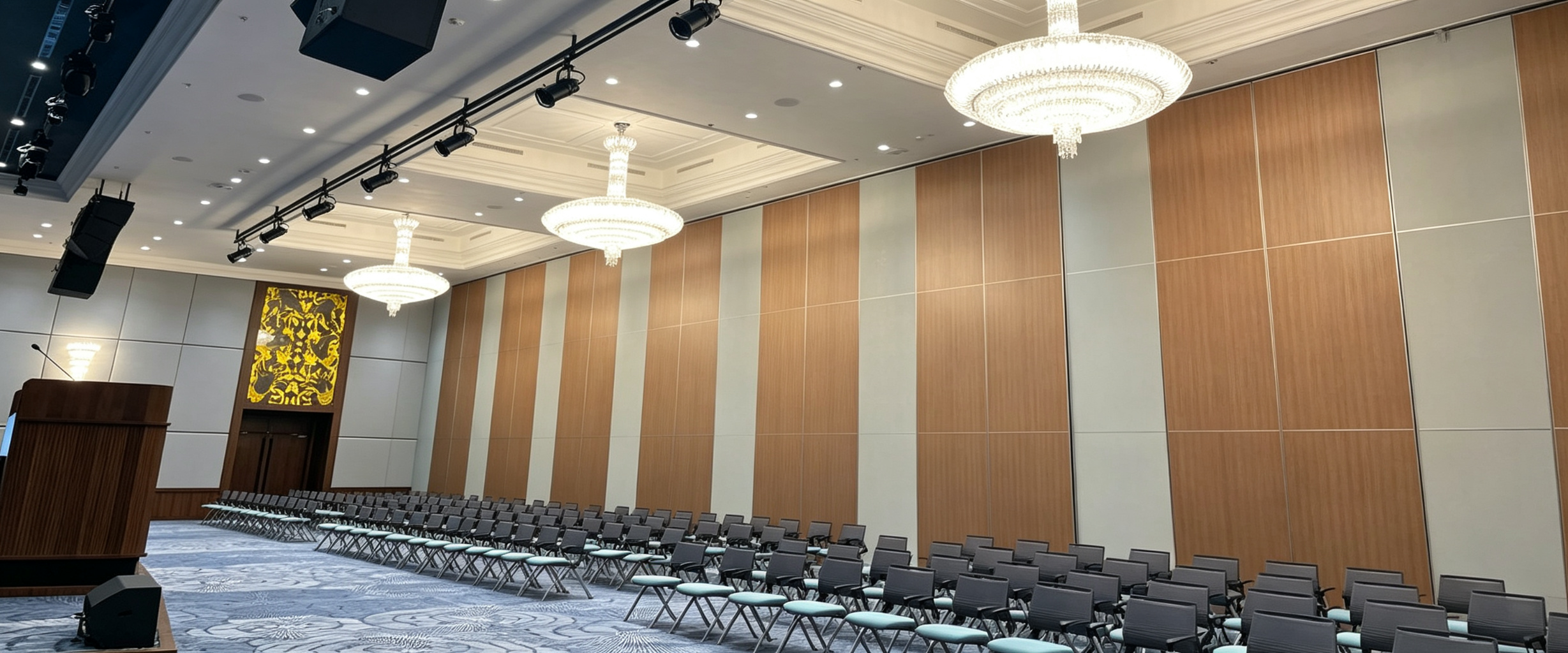

Banquet Hall in Hotel
