Frameless Movable Glass Wall
Neuwall Series 40 Frameless Movable Glass Wall
Modern Space Division with Seamless Transparency
Product Overview
The Neuwall Series 40 is a premium frameless movable glass wall system designed for contemporary office and commercial spaces. Featuring 12mm thick glass panels, this system combines minimalist aesthetics with functional flexibility, allowing effortless space reconfiguration while maintaining an open, airy environment.
Key Features:
✔ Sleek Frameless Design – Clean lines with minimal visible hardware for a modern look
✔ Smooth Operation – Low-profile track system with brush seals for quiet movement
✔ Customizable Height – Adjustable panel heights to fit various ceiling conditions
✔ Secure & Stable – Floor pin locking mechanism for stability
✔ Versatile Applications – Ideal for offices, conference rooms, retail spaces, and lobbies
Technical Specifications
1. Dimensions & Structure
| Parameter | Specification |
| Glass Thickness | 10mm or 12mm (standard) |
| Track Height (SH) | Minimum 150mm |
| Panel Height (EH) | Customizable (see diagram),Max height 4000mm |
| Bottom Clearance | 15mm from floor level (FFL) |
| Track Width | Low-profile design (40mm) |
2. System Components
- Glass Panels – 12mm thick tempered glass (clear or tinted options available)
- Track System – Slim aluminum track with brush seals for smooth sliding
- Floor Fixing – Integrated floor pins for secure panel alignment
- Sealing Mechanism – Brush seals ensure noise reduction and stability
3. Installation Requirements
- Ceiling Clearance – Minimum 150mm from track to ceiling
- Floor Level Tolerance – ±3mm for optimal operation
- Structural Support – Requires reinforced track mounting
Visual Reference

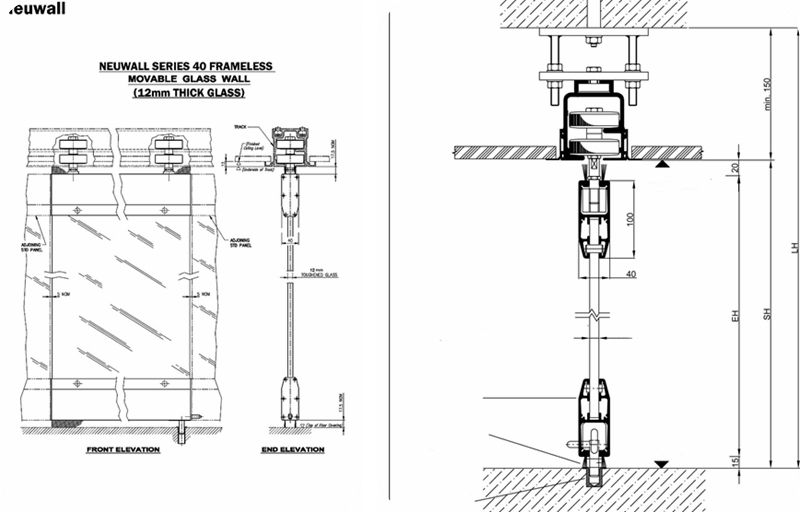

Diagram Key:
- Front Elevation (Left) – Shows full-height glass panel with track and floor pin
- End Elevation (Right) – Displays cross-section of track, panel, and sealing system
- Critical Measurements – SH (Track Height), EH (Panel Height), LH (Total Height)
Applications
✅ Office Partitions – Create flexible workspaces without visual barriers
✅ Conference Rooms – Enable sound-dampened yet transparent divisions
✅ Retail Spaces – Maintain open sightlines while defining zones
✅ Lobbies & Showrooms – Enhance modern aesthetics with functional separation
Why Choose Neuwall Series 40?
- Minimalist & Modern – No bulky frames for uninterrupted sightlines
- Durable & Safe – 12mm tempered glass meets safety standards
- Easy Maintenance – Brush seals prevent dust accumulation in tracks
- Customizable – Available in different glass tints and panel widths
